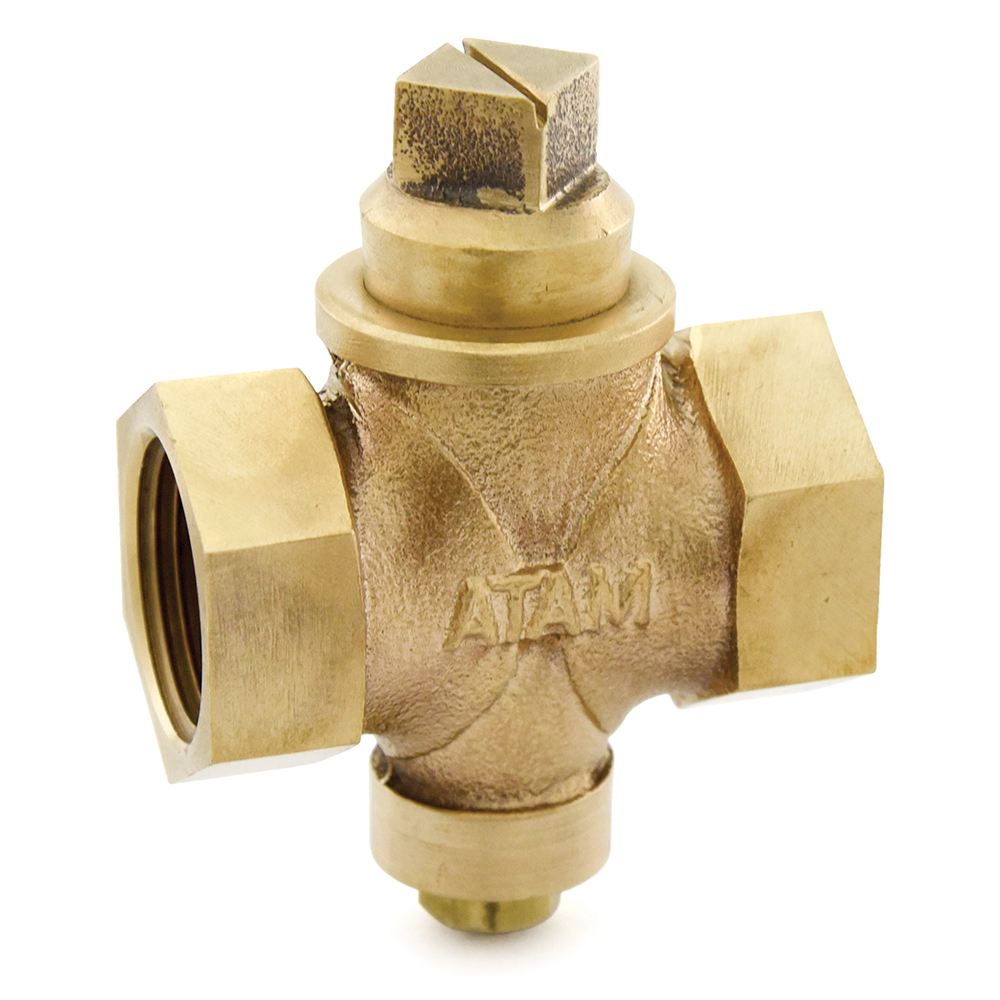

AV-64 Bronze Plug Cock (Main Cock), Screwed Ends

AV-64 | Bronze Plug Cock (Main Cock), Screwed Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Fitted with Taper Plug in a Taper Seated Body

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 200 Psig (Hyd.), Seat: 100 Psig (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Plug	1	Bronze	BSEN 1982 Gr. CC491K
2	Body	1	Bronze	BSEN 1982 Gr. CC491K
3	Washer	1	Bronze	BSEN 1982 Gr. CC491K
4	Spring Washer	1	M.S.	BS 916
5	Nut	1	M.S.	BS 916

Download PDF Product Inquiry

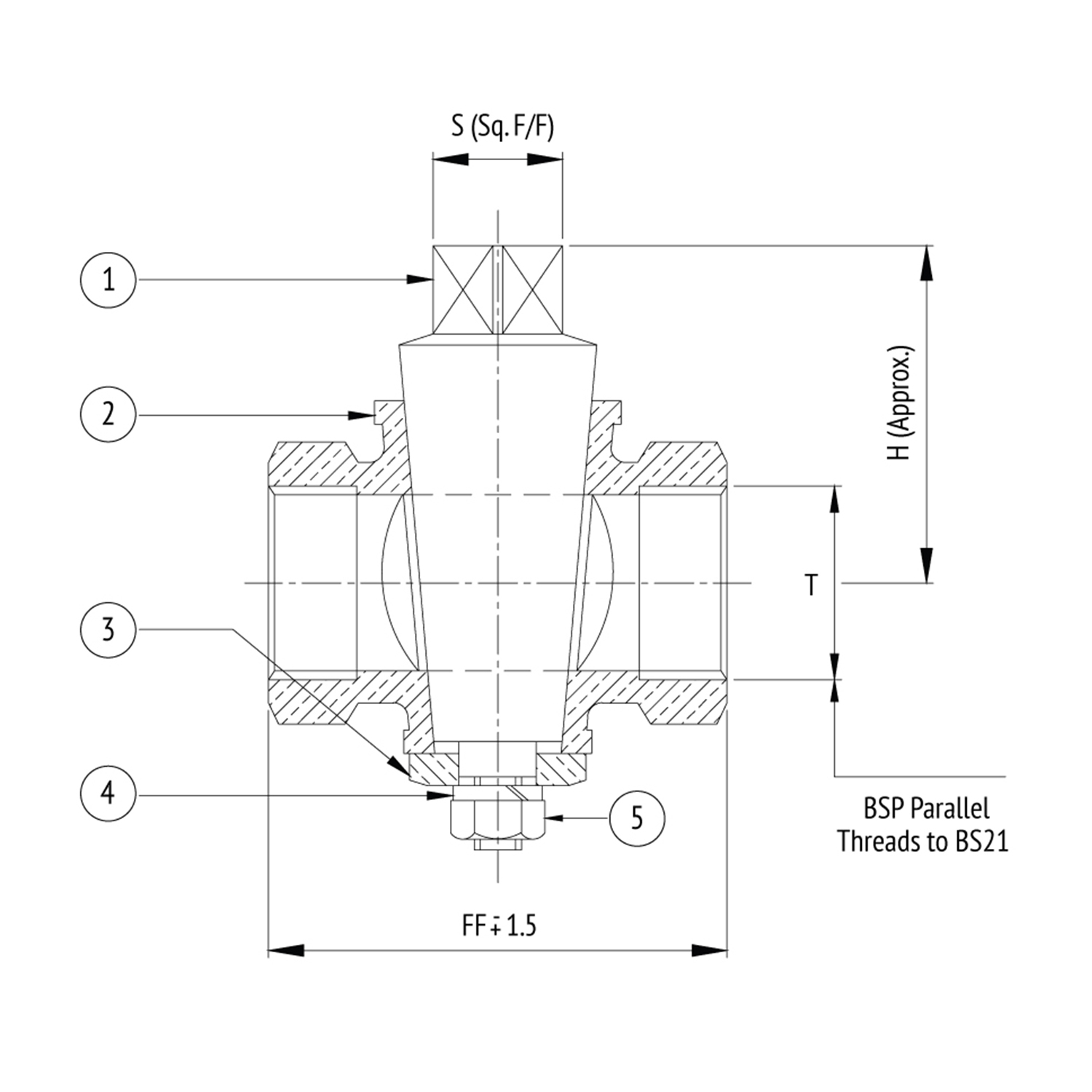

Dimensional Data

Size (mm)	FF	H	S	T
10	56	46	13	3/8”
15	56	46	13	1/2”
20	62	48	15	3/4”
25	73	56	16	1”
32	95	70	22	1.1/4”
40	106	80	24	1.1/2”
50	134	98	26	2”
65	160	105	32	2.1/2”
80	185	110	33	3”

Download PDF Product Inquiry

AV-64 | Bronze Plug Cock (Main Cock), Screwed Ends

Product Inquiry

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Fitted with Taper Plug in a Taper Seated Body

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 200 Psig (Hyd.), Seat: 100 Psig (Hyd.)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Plug 1 Bronze BSEN 1982 Gr. CC491K

2 Body 1 Bronze BSEN 1982 Gr. CC491K

3 Washer 1 Bronze BSEN 1982 Gr. CC491K

4 Spring Washer 1 M.S. BS 916

5 Nut 1 M.S. BS 916

Dimensional Data

Size (mm) FF H S T

10 56 46 13 3/8”

15 56 46 13 1/2”

20 62 48 15 3/4”

25 73 56 16 1”

32 95 70 22 1.1/4”

40 106 80 24 1.1/2”

50 134 98 26 2”

65 160 105 32 2.1/2”

80 185 110 33 3”
