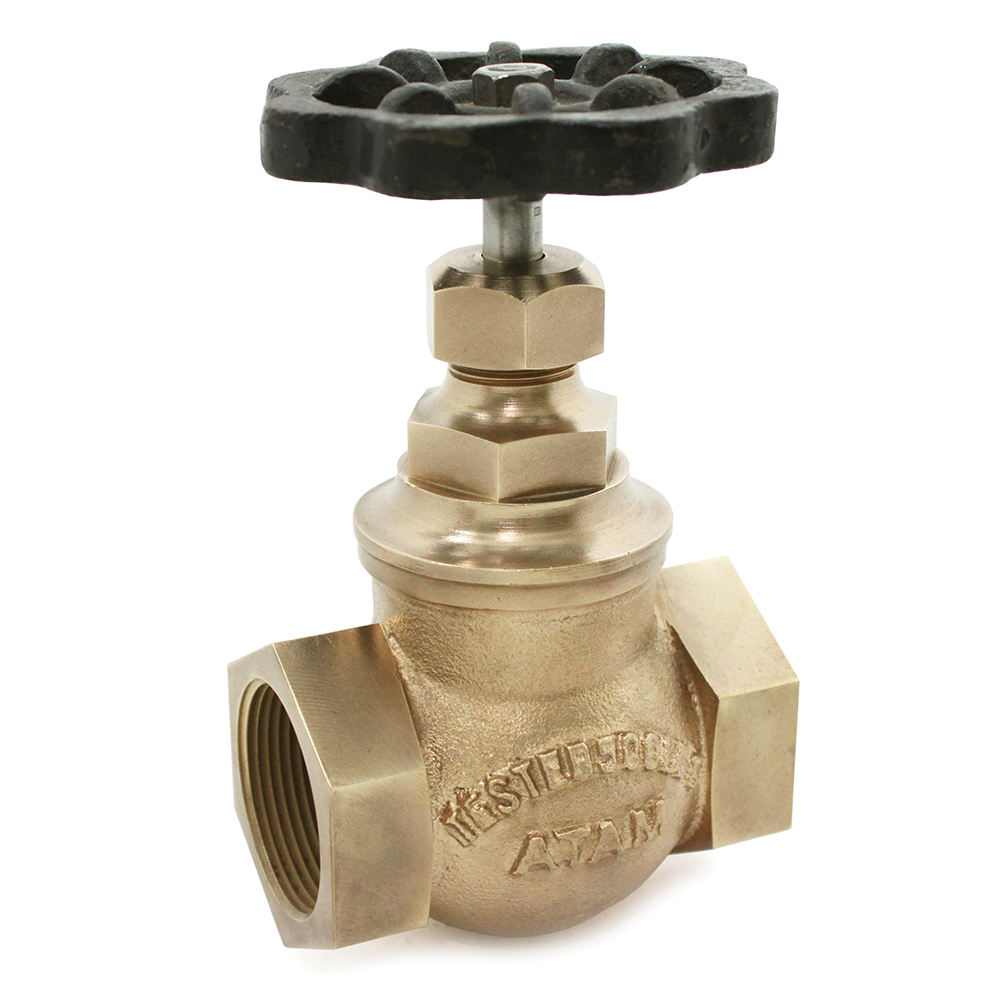

AV-69 Bronze Globe Valve No.5, Screwed Ends

AV-69 | Bronze Globe Valve No.5, Screwed Ends

Features

Pressure / Class Rating

PN-20

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Teflon / Rubber Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 450 Psig (Hyd.), Seat & Back Seat: 320 Psig (Hyd.), Seat: 100 Psig (Air)

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	PTFE Teflon	BS EN 12086-1
3	Disc Holder	1	Bronze	BSEN 1982 Gr. CC491K
4	Disc Nut	1	Bronze	BSEN 1982 Gr. CC491K
5	Bonnet	1	Bronze	BSEN 1982 Gr. CC491K
6	Packing	–	Graphited Asbestos	–
7	Gland	1	Bronze / Brass	BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2
8	Gland Nut	1	Bronze	BSEN 1982 Gr. CC491K
9	Stem	1	H.T. Brass	DIN EN 12164 Gr. CW721R / IS 6912 Gr. FLB
10	Handwheel	1	C.I.	BS 1452 Gr.220

Download PDF Product Inquiry

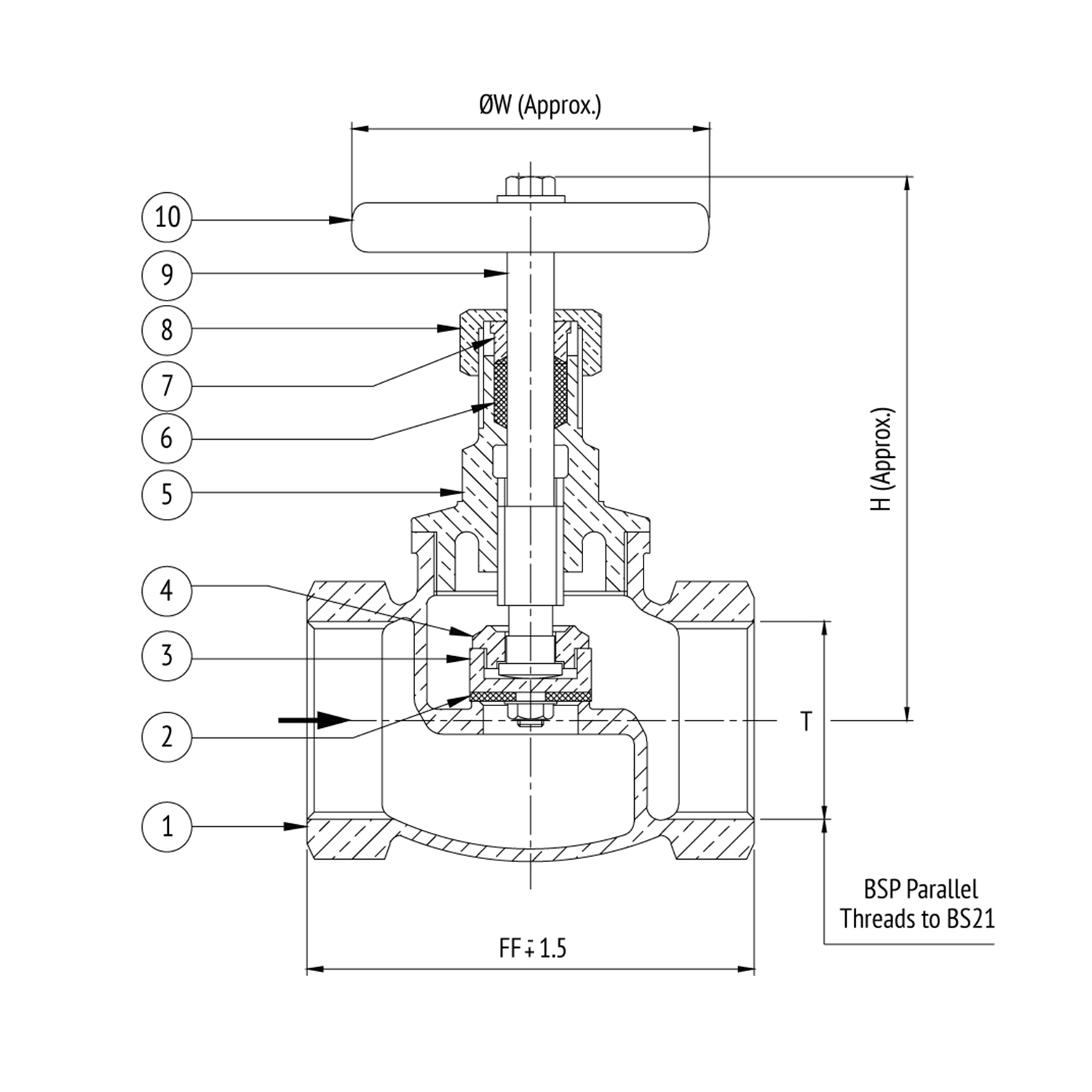

Dimensional Data

Size (mm)	FF	H	ØW	T
8	50	86	50	1/4”
10	52	86	50	3/8”
15	61	99	56	1/2”
20	72	115	71	3/4”
25	84	125	71	1”
32	93	137	89	1.1/4”
40	108	155	95	1.1/2”
50	128	162	119	2”

Download PDF Product Inquiry

AV-69 | Bronze Globe Valve No.5, Screwed Ends

Product Inquiry

Features

Pressure / Class Rating

PN-20

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem with Backseat Arrangement, Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Teflon / Rubber Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 450 Psig (Hyd.), Seat & Back Seat: 320 Psig (Hyd.), Seat: 100 Psig (Air)

Notes

Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Disc 1 PTFE Teflon BS EN 12086-1

3 Disc Holder 1 Bronze BSEN 1982 Gr. CC491K

4 Disc Nut 1 Bronze BSEN 1982 Gr. CC491K

5 Bonnet 1 Bronze BSEN 1982 Gr. CC491K

6 Packing – Graphited Asbestos –

7 Gland 1 Bronze / Brass BS EN 1982 Gr. CC491K / IS 318 Gr. LTB2

8 Gland Nut 1 Bronze BSEN 1982 Gr. CC491K

9 Stem 1 H.T. Brass DIN EN 12164 Gr. CW721R / IS 6912 Gr. FLB

10 Handwheel 1 C.I. BS 1452 Gr.220

Dimensional Data

Size (mm) FF H ØW T

8 50 86 50 1/4”

10 52 86 50 3/8”

15 61 99 56 1/2”

20 72 115 71 3/4”

25 84 125 71 1”

32 93 137 89 1.1/4”

40 108 155 95 1.1/2”

50 128 162 119 2”
