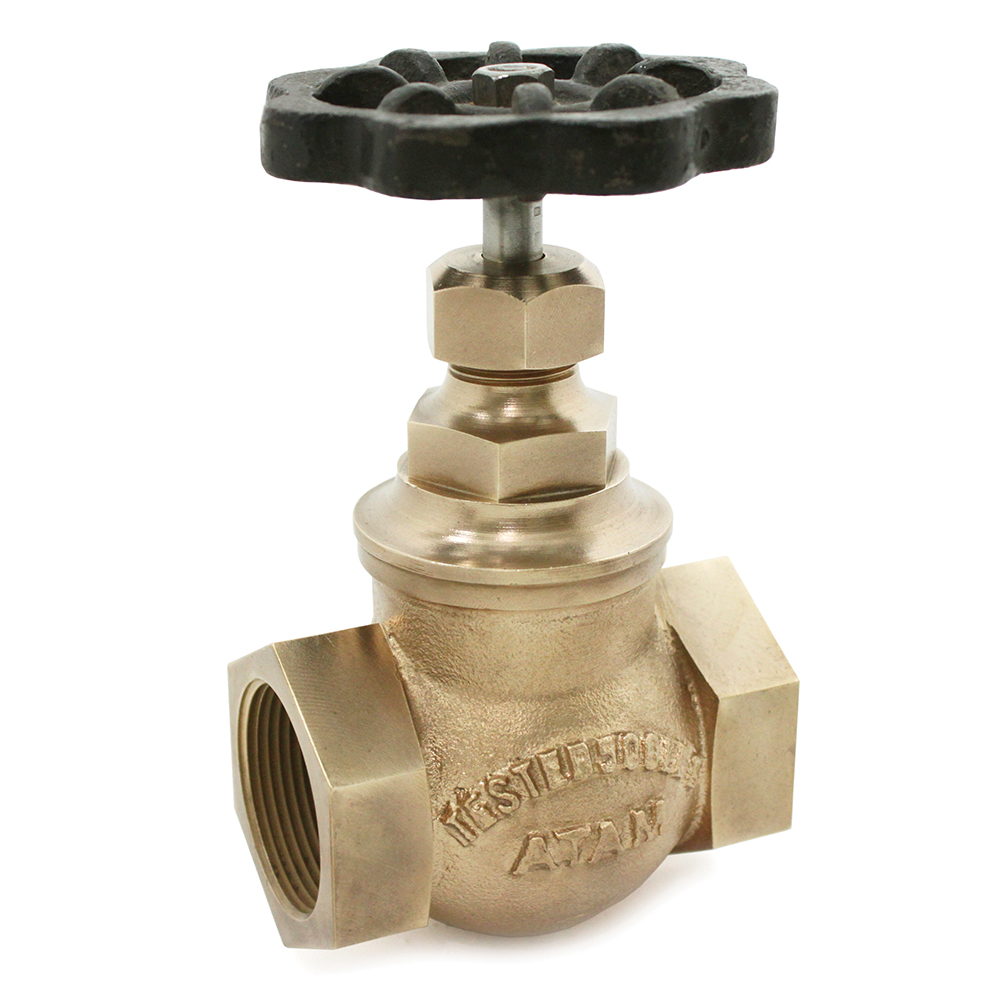

AV-8 Bronze Globe Valve No.4, Screwed Ends, PN-16

AV-8 | Bronze Globe Valve No.4, Screwed Ends, PN-16

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-16

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Teflon / Rubber Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 348 Psig (Hyd.), Seat & Back Seat: 255 Psig (Hyd.)

Notes

Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	Bronze	BSEN 1982 Gr. CC491K
3	Disc Nut	1	Bronze	BSEN 1982 Gr. CC491K
4	Bonnet	1	Bronze	BSEN 1982 Gr. CC491K
5	Gland Nut	1	Bronze	BSEN 1982 Gr. CC491K
6	Gland	1	Bronze / Brass	BSEN 1982 Gr. CC491K
7	Stem	1	Brass	–
8	Packing	1	Graphited Asbestos	–
9	Handwheel	1	Cast Iron	BS 1452 Gr.220
10	Soft Seat	1	PTFE	–
11	Nut / Screw	1	Mild Steel	–

Download PDF Product Inquiry

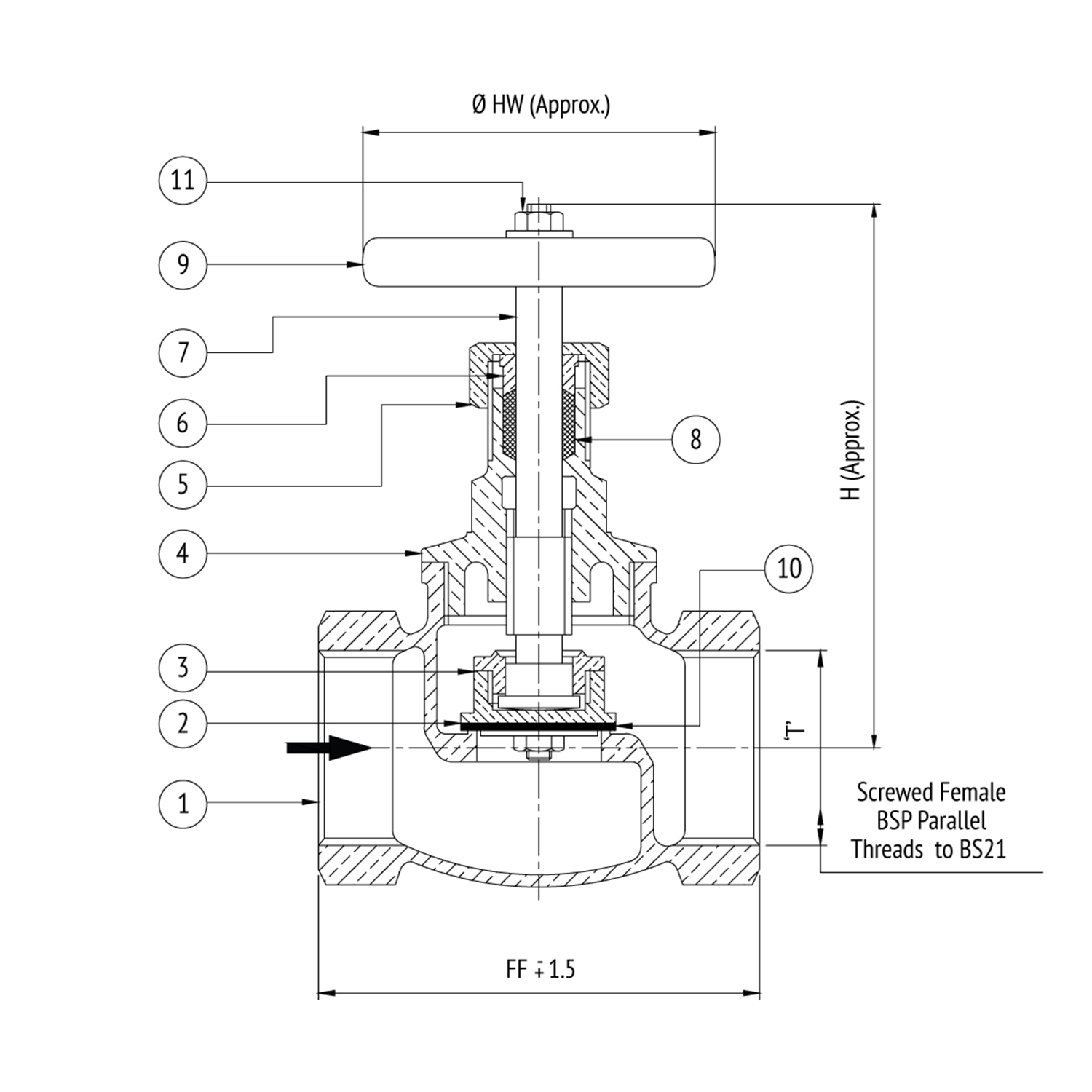

Dimensional Data

Size (mm) FF H øHW T

15 50 77 50 1/2”

20 55 92 62 3/4”

25 68 98 66 1”

32 76 110 75 1.1/4”

40 82 120 87 1.1/2”

50 100 130 95 2”

Download PDF Product Inquiry
AV-8 | Bronze Globe Valve No.4, Screwed Ends, PN-16

Product Inquiry

Size (mm)	FF	H	øHW	T
15	50	77	50	1/2”
20	55	92	62	3/4”
25	68	98	66	1”
32	76	110	75	1.1/4”
40	82	120	87	1.1/2”
50	100	130	95	2”

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-16

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Type of Disc

Renewable Teflon / Rubber Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 348 Psig (Hyd.), Seat & Back Seat: 255 Psig (Hyd.)

Notes

Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Disc 1 Bronze BSEN 1982 Gr. CC491K

3 Disc Nut 1 Bronze BSEN 1982 Gr. CC491K

4 Bonnet 1 Bronze BSEN 1982 Gr. CC491K

5 Gland Nut 1 Bronze BSEN 1982 Gr. CC491K

6 Gland 1 Bronze / Brass BSEN 1982 Gr. CC491K

7 Stem 1 Brass –

8 Packing 1 Graphited Asbestos –

9 Handwheel 1 Cast Iron BS 1452 Gr.220

10 Soft Seat 1 PTFE –

11 Nut / Screw 1 Mild Steel –

Dimensional Data

Size (mm) FF H øHW T

15 50 77 50 1/2”

20 55 92 62 3/4”

25 68 98 66 1”

32 76 110 75 1.1/4”

40 82 120 87 1.1/2”

50 100 130 95 2”

Size (mm)	FF	H	øHW	T
15	50	77	50	1/2”
20	55	92	62	3/4”
25	68	98	66	1”
32	76	110	75	1.1/4”
40	82	120	87	1.1/2”
50	100	130	95	2”
