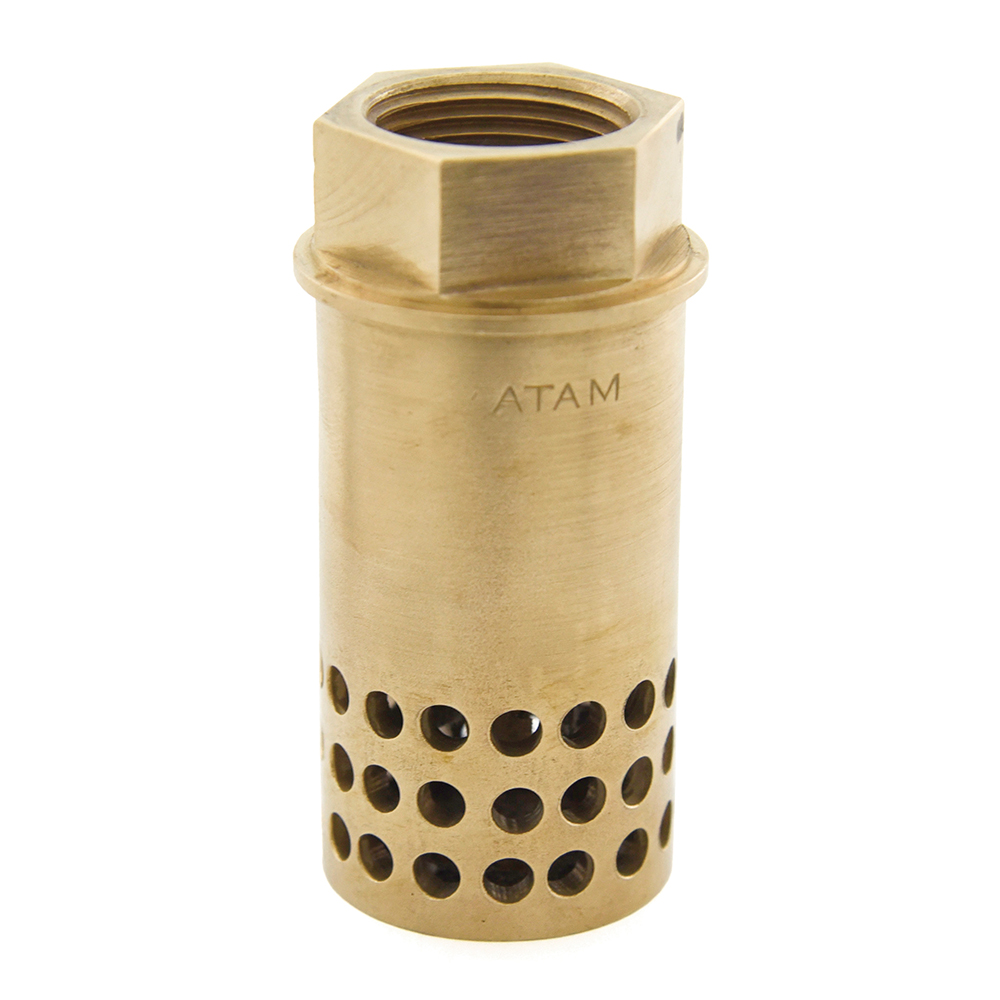

AV-90 Bronze Foot Valve, Screwed Ends, PN-20

AV-90 | Bronze Foot Valve, Screwed Ends, PN-20

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-20

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Vertical Lift Type, Metallic Disc with Metallic Strainer

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 435 Psig (Hyd.), Seat: 320 Psig (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

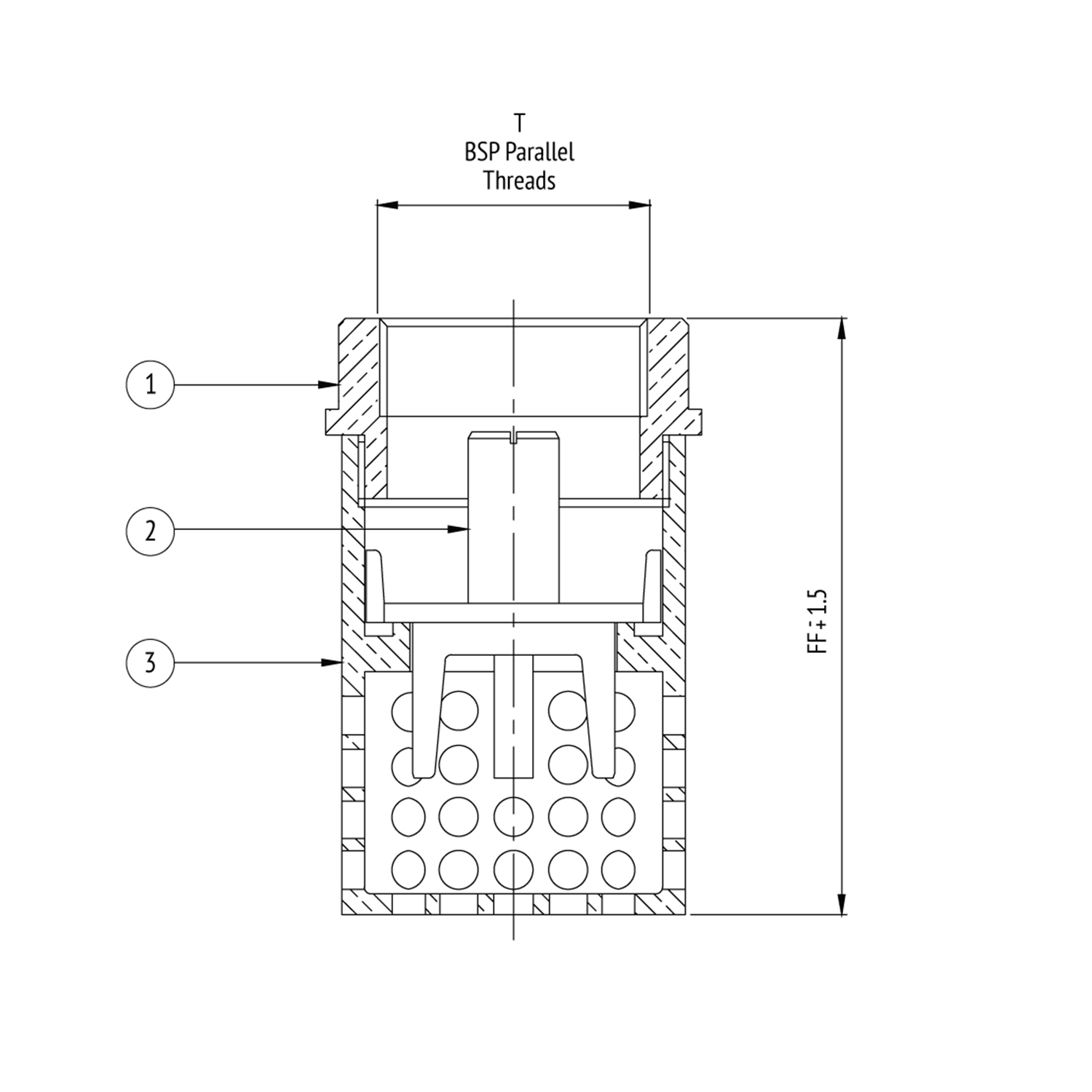

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Disc 1 Bronze BSEN 1982 Gr. CC491K

3 Cage 1 Bronze BSEN 1982 Gr. CC491K

AV-90 | Bronze Foot Valve, Screwed Ends, PN-20

Download PDF Product Inquiry
Dimensional Data

Size (mm) FF T

15 82 1/2”

20 82 3/4”

25 90 1”

32 90 1.1/4”

40 100 1.1/2”

50 102 2”

Download PDF Product Inquiry
AV-90 | Bronze Foot Valve, Screwed Ends, PN-20

Product Inquiry

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	Bronze	BSEN 1982 Gr. CC491K
3	Cage	1	Bronze	BSEN 1982 Gr. CC491K

Size (mm)	FF	T
15	82	1/2”
20	82	3/4”
25	90	1”
32	90	1.1/4”
40	100	1.1/2”
50	102	2”

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-20

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Vertical Lift Type, Metallic Disc with Metallic Strainer

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 435 Psig (Hyd.), Seat: 320 Psig (Hyd.)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Disc 1 Bronze BSEN 1982 Gr. CC491K

3 Cage 1 Bronze BSEN 1982 Gr. CC491K

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	Bronze	BSEN 1982 Gr. CC491K
3	Cage	1	Bronze	BSEN 1982 Gr. CC491K

Dimensional Data

Size (mm) FF T

15 82 1/2”

20 82 3/4”

25 90 1”

32 90 1.1/4”

40 100 1.1/2”

50 102 2”

Size (mm)	FF	T
15	82	1/2”
20	82	3/4”
25	90	1”
32	90	1.1/4”
40	100	1.1/2”
50	102	2”
