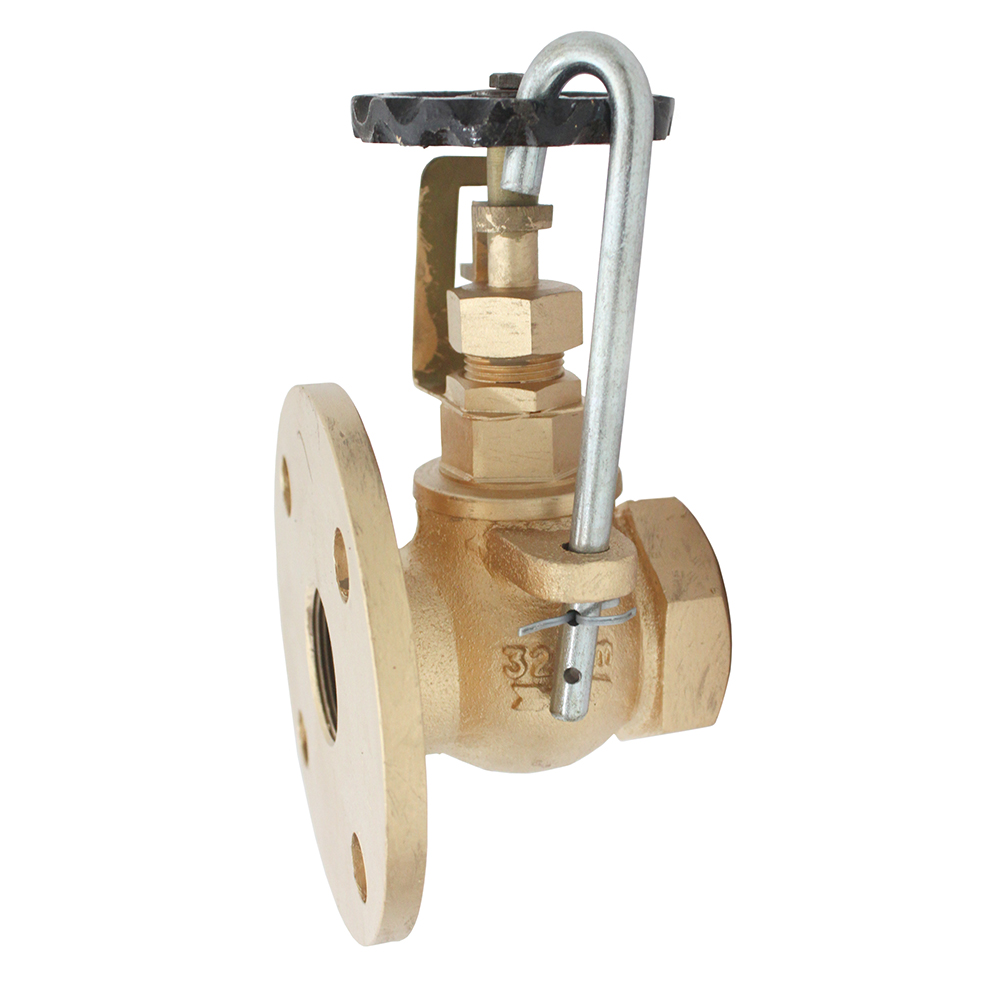

AV-92 Bronze Globe Valve, Mixed Ends

AV-92 | Bronze Globe Valve, Mixed Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem, Handwheel Operated with Open Shut Indicator & Pad Locking Arrangements

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy with PTFE / Teflon Seated

End Details

Inlet Flange End to BS-10 Table-D & Other Side Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Notes

These valves are suitable for transformers.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Disc	1	Bronze (PTFE Seated)	BSEN 1982 Gr. CC491K
3	Disc Nut	1	Bronze	BSEN 1982 Gr. CC491K
4	Bonnet	1	Bronze	BSEN 1982 Gr. CC491K
5	Gland Packing	–	Asbestos	–
6	Indicator	1	Bronze	BSEN 1982 Gr. CC491K
7	Gland Nut	1	Bronze / Brass	BSEN 1982 Gr. CC491K / –
8	Gland	1	Bronze / Brass	BSEN 1982 Gr. CC491K / –
9	Stem	1	H.T. Brass	DIN EN 12164 Gr. CW721R
10	Indicator Plate	1	Brass Sheet	–
11	Handwheel	1	Aluminium	–
12	Locking Rod	1	Carbon Steel	Galvanised

Download PDF Product Inquiry

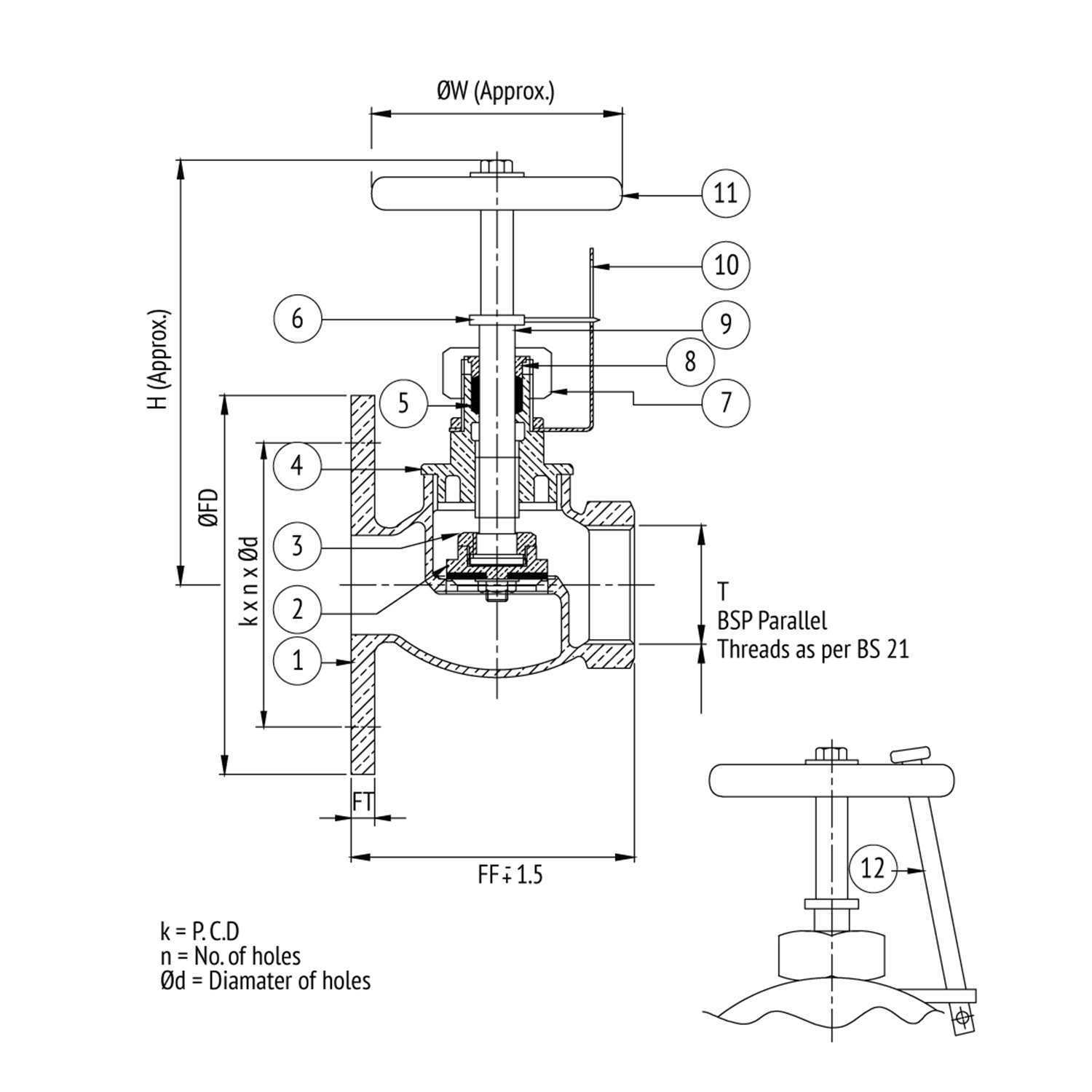

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT	T	k	n	Ød
15	54	99	50	95	6.4	1/2”	66	4	14
20	71	100	60	101.6	6.4	3/4”	73	4	14
25	77	122	65	115	7.9	1”	82.6	4	14
32	87	130	77	120.7	7.9	1.1/4”	94	4	14
40	91	140	85	133.4	9.5	1.1/2”	98.4	4	14
50	107	160	98	150	9.5	2”	115	4	17

Download PDF Product Inquiry

AV-92 | Bronze Globe Valve, Mixed Ends

Product Inquiry

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Rising Stem, Handwheel Operated with Open Shut Indicator & Pad Locking Arrangements

Type of Seat

Integral Seat

Type of Disc

Renewable Disc

Trim

Cu-Alloy with PTFE / Teflon Seated

End Details

Inlet Flange End to BS-10 Table-D & Other Side Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Notes

These valves are suitable for transformers.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Disc 1 Bronze (PTFE Seated) BSEN 1982 Gr. CC491K

3 Disc Nut 1 Bronze BSEN 1982 Gr. CC491K

4 Bonnet 1 Bronze BSEN 1982 Gr. CC491K

5 Gland Packing – Asbestos –

6 Indicator 1 Bronze BSEN 1982 Gr. CC491K

7 Gland Nut 1 Bronze / Brass BSEN 1982 Gr. CC491K / –

8 Gland 1 Bronze / Brass BSEN 1982 Gr. CC491K / –

9 Stem 1 H.T. Brass DIN EN 12164 Gr. CW721R

10 Indicator Plate 1 Brass Sheet –

11 Handwheel 1 Aluminium –

12 Locking Rod 1 Carbon Steel Galvanised

Dimensional Data

Size (mm) FF H ØW ØFD FT T k n Ød

15 54 99 50 95 6.4 1/2” 66 4 14

20 71 100 60 101.6 6.4 3/4” 73 4 14

25 77 122 65 115 7.9 1” 82.6 4 14

32 87 130 77 120.7 7.9 1.1/4” 94 4 14

40 91 140 85 133.4 9.5 1.1/2” 98.4 4 14

50 107 160 98 150 9.5 2” 115 4 17
