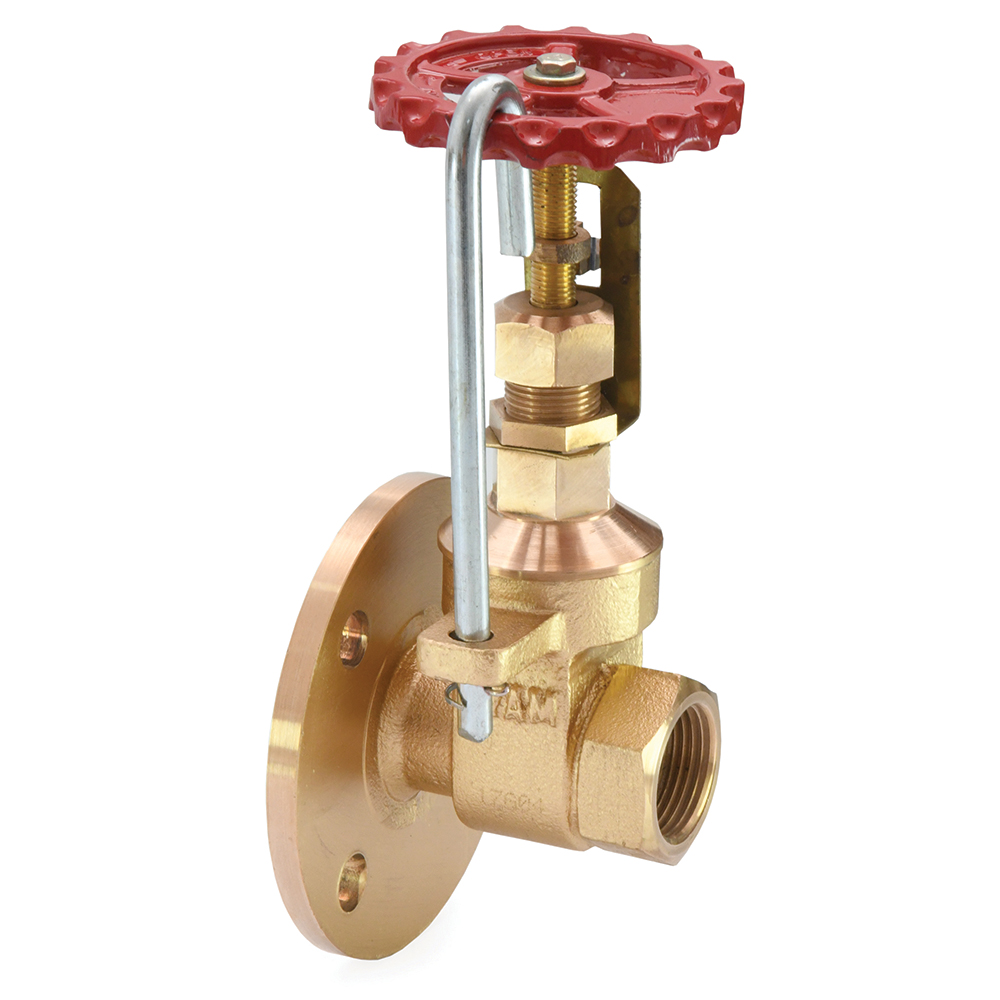

AV-92A Bronze Gate Valve, Mixed Ends

AV-92A | Bronze Gate Valve, Mixed Ends

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated with Open Shut Indicator & Pad Locking Arrangements

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Inlet Flange End to BS-10 Table-D & Other Side Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Notes

These valves are suitable for transformers.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Bronze	BSEN 1982 Gr. CC491K
2	Wedge	1	Bronze	BSEN 1982 Gr. CC491K
3	Bonnet	1	Bronze	BSEN 1982 Gr. CC491K
4	Locking nut	1	Bronze	BSEN 1982 Gr. CC491K
5	Gland Nut	1	Bronze	BSEN 1982 Gr. CC491K
6	Indicating Plate	1	Brass Sheet	–
7	Stem	1	H.T. Brass	EN 12164 Gr. CW721R
8	Handwheel	1	Aluminium	–
9	Screw / Nut	1	Steel	–
10	Indicator	1	Bronze	BSEN 1982 Gr. CC491K
11	Gland	1	Bronze	BSEN 1982 Gr. CC491K
12	Gland Packing	–	Asbestos	–
13	Stuffing Box	1	Bronze	BS EN 1982 Gr. CC491K
14	Locking Rod	1	M.S	Galvanised

Download PDF Product Inquiry

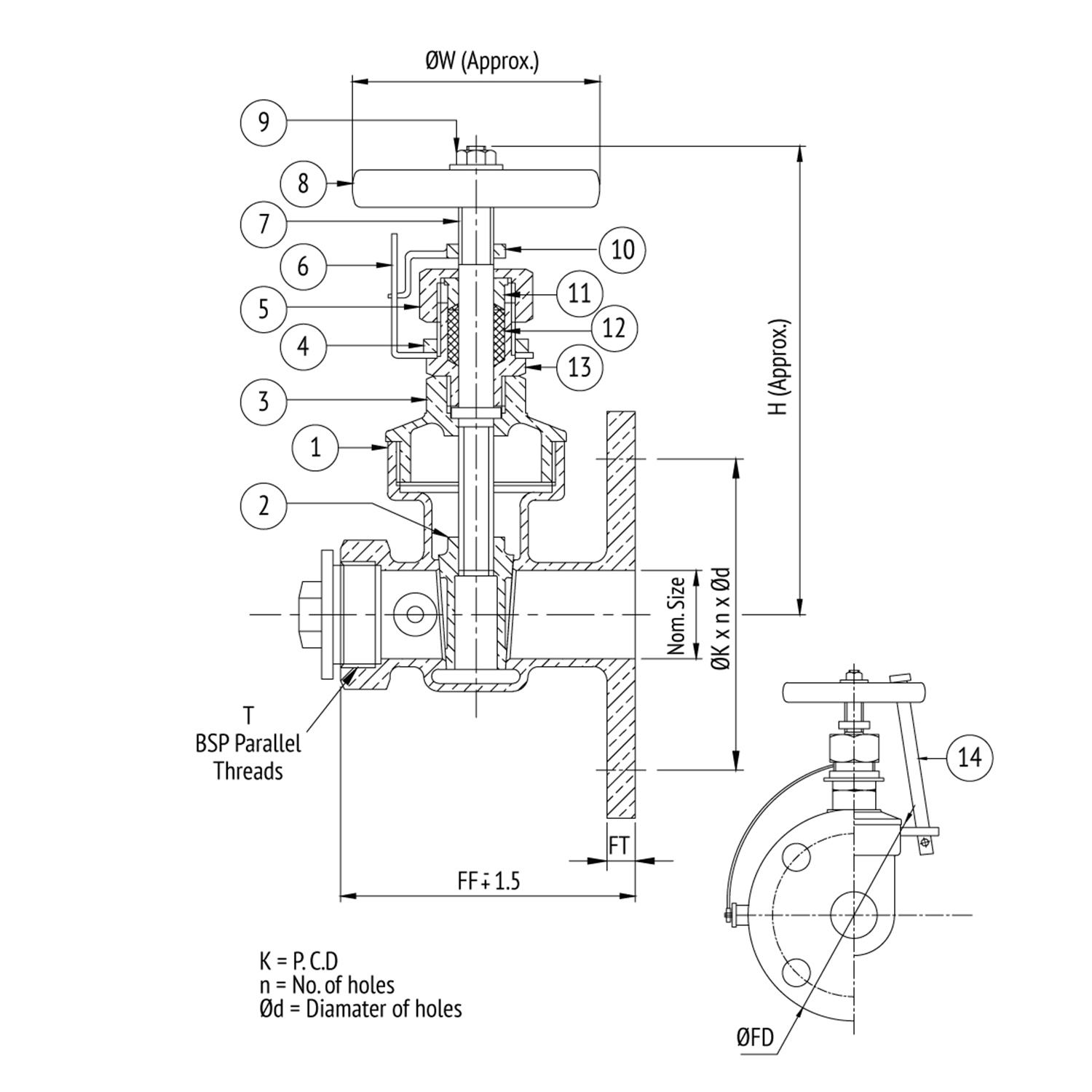

Dimensional Data

Size (mm)	FF	H	ØW	ØFD	FT	T	ØK	n	Ød
15	66	95	63	95	6.4	1/2”	66	4	14
20	66	110	63	101.6	6.4	3/4”	73	4	14
25	80	125	78	115	7.9	1”	82.6	4	14
32	90	145	78	120.7	7.9	1.1/4”	94	4	14
40	100	160	100	133.4	9.5	1.1/2”	98.4	4	14
50	110	175	111	150	9.5	2”	115	4	17

Download PDF Product Inquiry

AV-92A | Bronze Gate Valve, Mixed Ends

Product Inquiry

Features

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated with Open Shut Indicator & Pad Locking Arrangements

Type of Seat

Integral Seat

Type of Wedge

Solid Wedge

Trim

Cu-Alloy

End Details

Inlet Flange End to BS-10 Table-D & Other Side Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Notes

These valves are suitable for transformers.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Bronze BSEN 1982 Gr. CC491K

2 Wedge 1 Bronze BSEN 1982 Gr. CC491K

3 Bonnet 1 Bronze BSEN 1982 Gr. CC491K

4 Locking nut 1 Bronze BSEN 1982 Gr. CC491K

5 Gland Nut 1 Bronze BSEN 1982 Gr. CC491K

6 Indicating Plate 1 Brass Sheet –

7 Stem 1 H.T. Brass EN 12164 Gr. CW721R

8 Handwheel 1 Aluminium –

9 Screw / Nut 1 Steel –

10 Indicator 1 Bronze BSEN 1982 Gr. CC491K

11 Gland 1 Bronze BSEN 1982 Gr. CC491K

12 Gland Packing – Asbestos –

13 Stuffing Box 1 Bronze BS EN 1982 Gr. CC491K

14 Locking Rod 1 M.S Galvanised

Dimensional Data

Size (mm) FF H ØW ØFD FT T ØK n Ød

15 66 95 63 95 6.4 1/2” 66 4 14

20 66 110 63 101.6 6.4 3/4” 73 4 14

25 80 125 78 115 7.9 1” 82.6 4 14

32 90 145 78 120.7 7.9 1.1/4” 94 4 14

40 100 160 100 133.4 9.5 1.1/2” 98.4 4 14

50 110 175 111 150 9.5 2” 115 4 17
