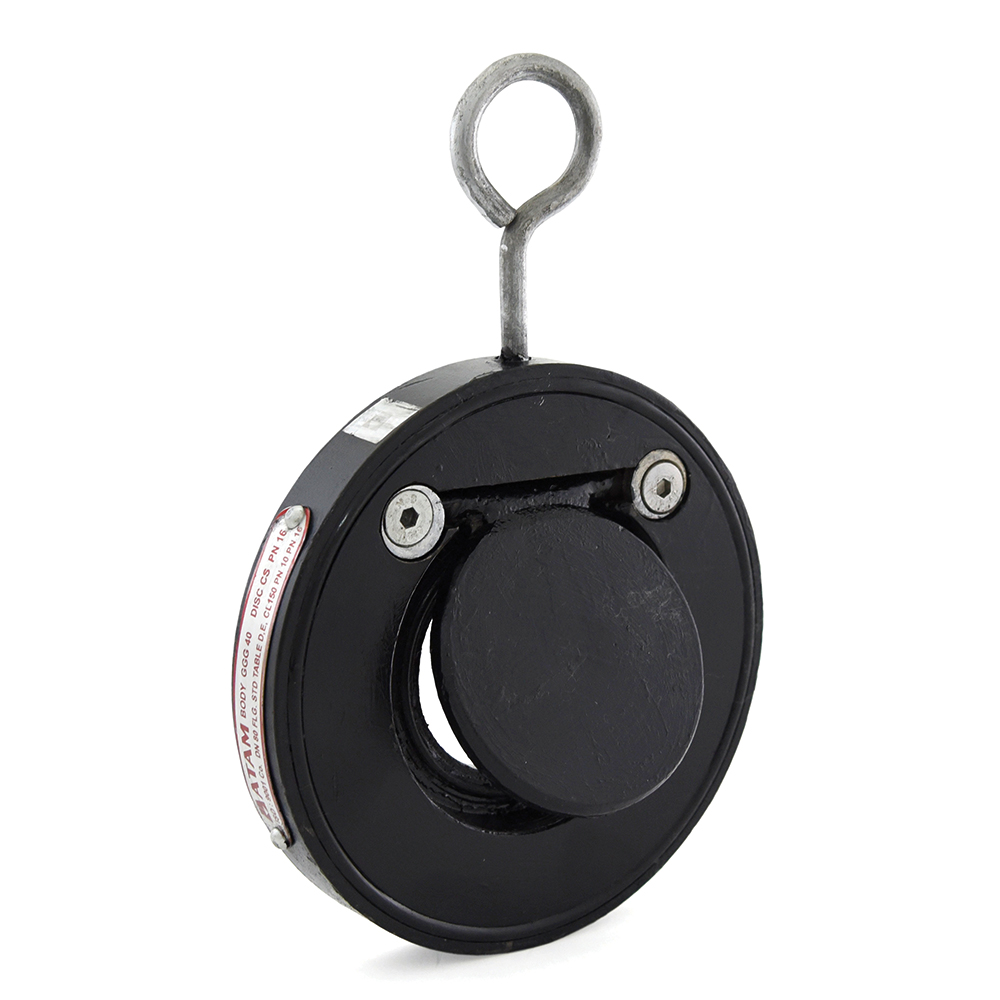

AV-97 S.G. Iron Flap Non Return Valve, PN-16

AV-97 | S.G. Iron Flap Non Return Valve, PN-16

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-16

Body Material Cum Standard

S.G Iron (EN 1563 Gr. GJS-400-15)

Product Description

Flap Type with Swing Disc

Type of Seat

Renewable Seat

Trim

Seat: NBR Rubber O-Ring, Disc: S.G Iron

End Details

Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Hook	1	Carbon Steel	–
2	Body	1	S.G. Iron	EN 1563 Gr. GJS-400-15
3	Screw	2	Carbon Steel	–
4	O-Ring	2	Nitrile Rubber	–
5	Disc	1	S.G. Iron	EN 1563 Gr. GJS-400-15
6	O-Ring	2	EPDM (Integrally Moulded)	–

Download PDF Product Inquiry

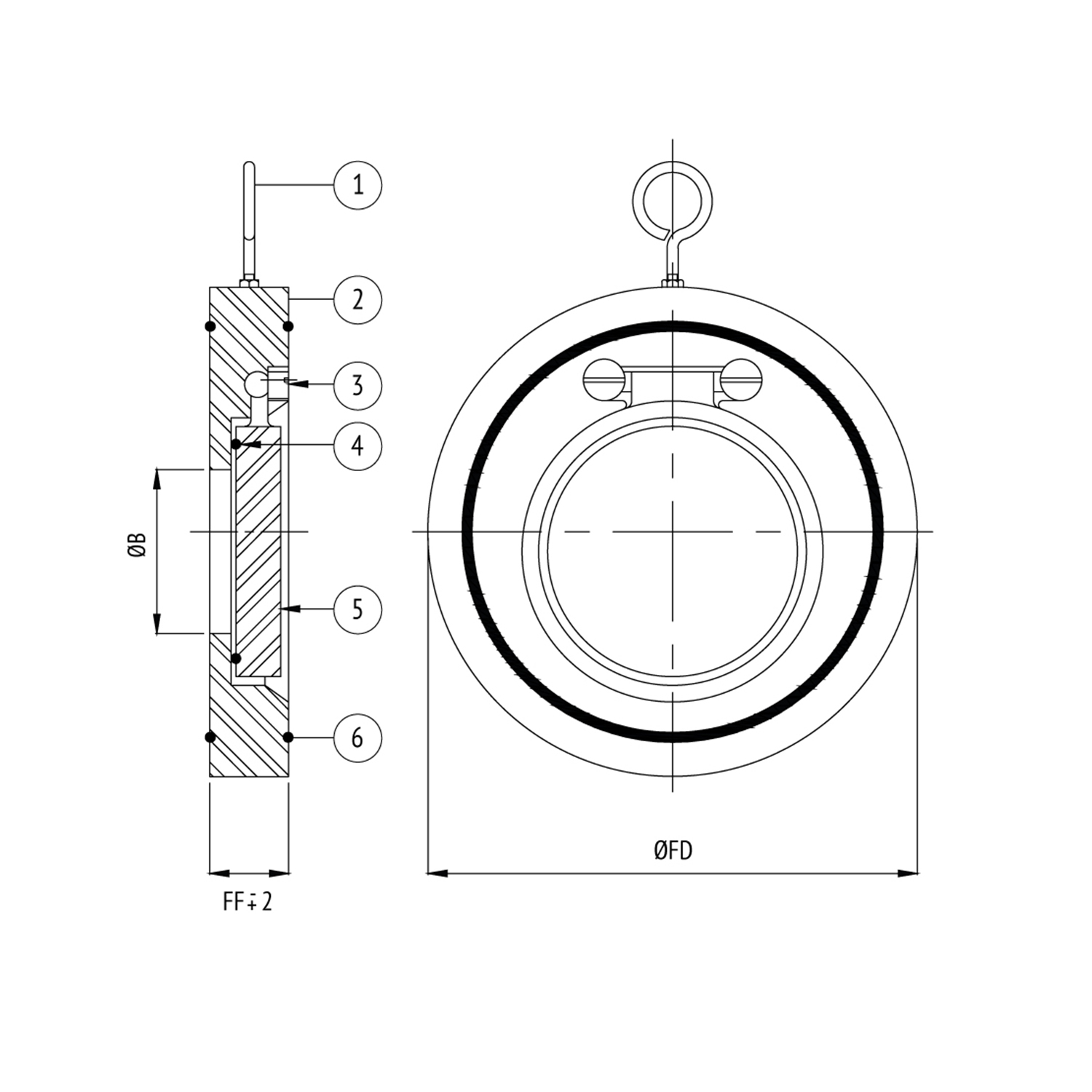

Dimensional Data

Size (mm) FF ØFD ØB

40 19 86 23

50 19 97 30

65 19 110 40

80 19 130 50

100 19 160 70

125 19 192 92

150 19 216 112

200 28 273 157

250 28 330 195

300 38 385 230

Download PDF Product Inquiry
AV-97 | S.G. Iron Flap Non Return Valve, PN-16

Product Inquiry

Size (mm)	FF	ØFD	ØB
40	19	86	23
50	19	97	30
65	19	110	40
80	19	130	50
100	19	160	70
125	19	192	92
150	19	216	112
200	28	273	157
250	28	330	195
300	38	385	230

Features

Testing Standard

BS EN 12266-Part 1

Pressure / Class Rating

PN-16

Body Material Cum Standard

S.G Iron (EN 1563 Gr. GJS-400-15)

Product Description

Flap Type with Swing Disc

Type of Seat

Renewable Seat

Trim

Seat: NBR Rubber O-Ring, Disc: S.G Iron

End Details

Suitable for insertion between Flanges as per ANSI B16.1 Class-125 DIN ND-10 & BS-10 Table-E

Test Pressure

Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Hook 1 Carbon Steel –

2 Body 1 S.G. Iron EN 1563 Gr. GJS-400-15

3 Screw 2 Carbon Steel –

4 O-Ring 2 Nitrile Rubber –

5 Disc 1 S.G. Iron EN 1563 Gr. GJS-400-15

6 O-Ring 2 EPDM (Integrally Moulded) –

Dimensional Data

Size (mm) FF ØFD ØB

40 19 86 23

50 19 97 30

65 19 110 40

80 19 130 50

100 19 160 70

125 19 192 92

150 19 216 112

200 28 273 157

250 28 330 195

300 38 385 230

Size (mm)	FF	ØFD	ØB
40	19	86	23
50	19	97	30
65	19	110	40
80	19	130	50
100	19	160	70
125	19	192	92
150	19	216	112
200	28	273	157
250	28	330	195
300	38	385	230
