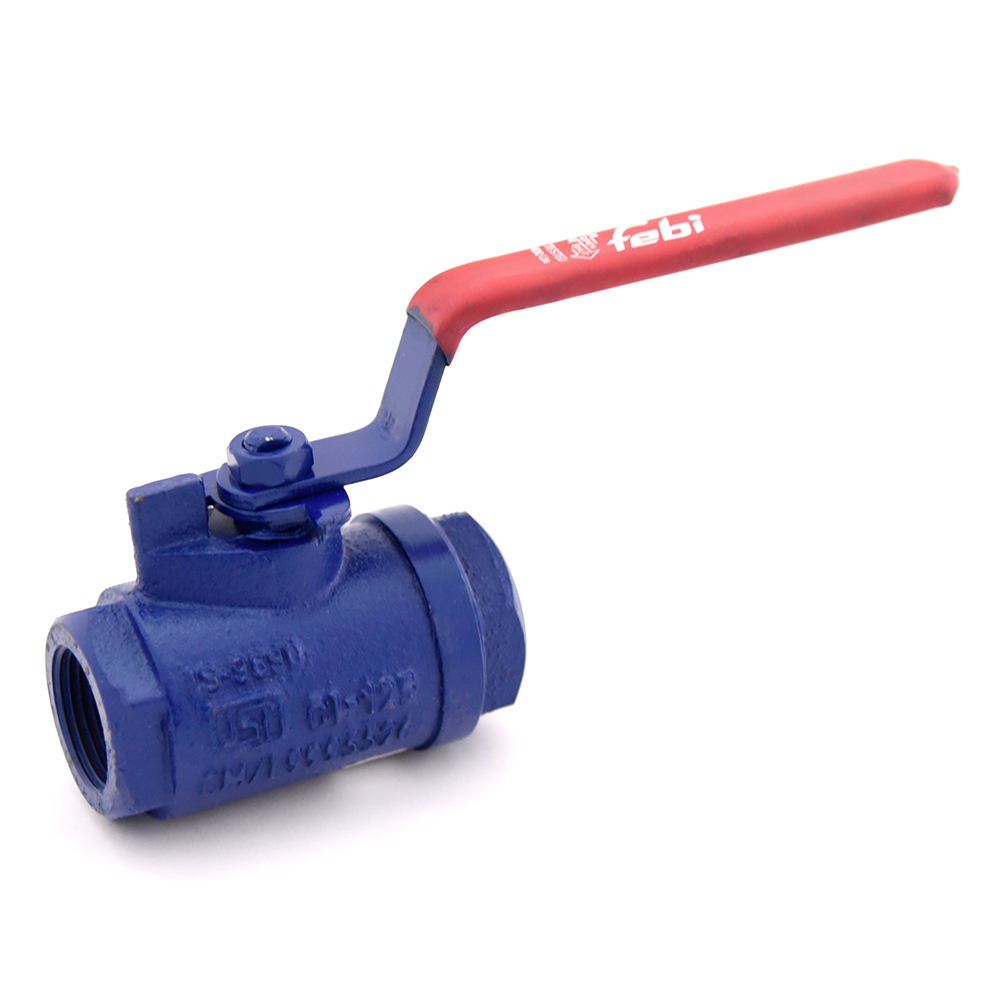

FV-503 Cast Iron Ball Valve, Screwed Ends, Class-125

FV-503 | Cast Iron Ball Valve, Screwed Ends, Class-125

Features

Product Standard

IS-9890

Pressure / Class Rating

Class-125

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG 220)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Screwed Female Parallel Threads (IS:554)

Test Pressure

Body: 20.7 Bar (Hyd.), Seat: 15.2 Bar (Hyd.)

Notes

Suitable for steam service with specialized PTFE.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	IS 210 Gr. FG220
2	Seat	2	PTFE	–
3	Ball	1	Stainless Steel	–
4	Stem Seal	1	PTFE	–
5	Packing	–	PTFE	–
6	Gland	1	Stainless Steel	IS 6603 Gr. 12 Cr. 12
7	Lever	1	Carbon Steel	with Plastic Sleeve
8	Lever Nut	1	Carbon Steel	–
9	Stem	1	Stainless Steel	IS 6603 Gr. 12 Cr. 12
10	Stopper	1	Carbon Steel	–
11	Body Connector	1	Cast Iron	IS 210 Gr. FG220

Download PDF Product Inquiry

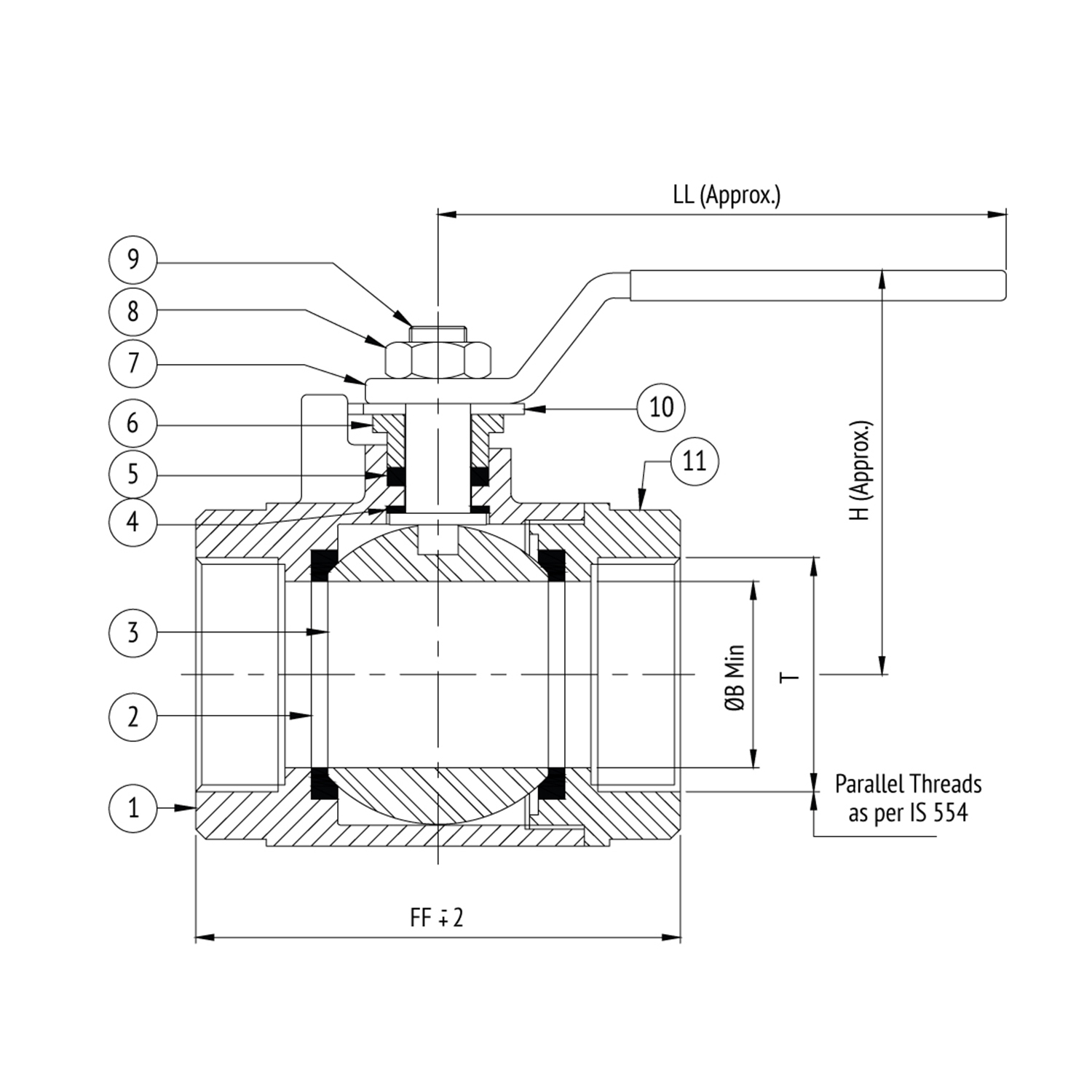

Dimensional Data

Size (mm)	FF	øB	H	LL	T
15	72	12.5	80	115	1/2”
20	79	18	87	135	3/4”
25	97	23	92	165	1”
32	106	30.5	98	180	1.1/4”
40	119	37	103	205	1.1/2”
50	136	50	110	205	2”
65	152	62.5	130	325	2.1/2”
80	189	75.5	140	325	3”
100	219	98	170	370	4”

Download PDF Product Inquiry

FV-503 | Cast Iron Ball Valve, Screwed Ends, Class-125

Product Inquiry

Features

Product Standard

IS-9890

Pressure / Class Rating

Class-125

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG 220)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Screwed Female Parallel Threads (IS:554)

Test Pressure

Body: 20.7 Bar (Hyd.), Seat: 15.2 Bar (Hyd.)

Notes

Suitable for steam service with specialized PTFE.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Iron IS 210 Gr. FG220

2 Seat 2 PTFE –

3 Ball 1 Stainless Steel –

4 Stem Seal 1 PTFE –

5 Packing – PTFE –

6 Gland 1 Stainless Steel IS 6603 Gr. 12 Cr. 12

7 Lever 1 Carbon Steel with Plastic Sleeve

8 Lever Nut 1 Carbon Steel –

9 Stem 1 Stainless Steel IS 6603 Gr. 12 Cr. 12

10 Stopper 1 Carbon Steel –

11 Body Connector 1 Cast Iron IS 210 Gr. FG220

Dimensional Data

Size (mm) FF øB H LL T

15 72 12.5 80 115 1/2”

20 79 18 87 135 3/4”

25 97 23 92 165 1”

32 106 30.5 98 180 1.1/4”

40 119 37 103 205 1.1/2”

50 136 50 110 205 2”

65 152 62.5 130 325 2.1/2”

80 189 75.5 140 325 3”

100 219 98 170 370 4”
