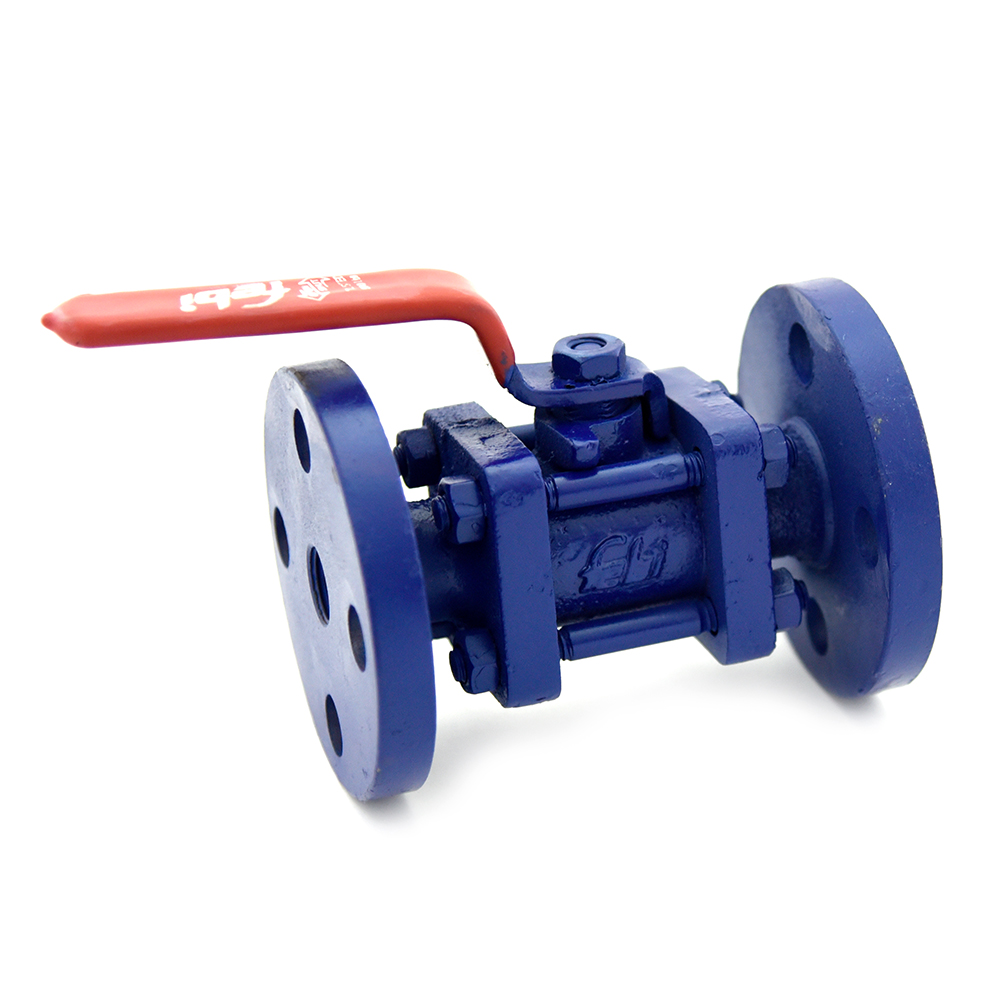

FV-504 Cast Iron Ball Valve, Flanged Ends

FV-504 | Cast Iron Ball Valve, Flanged Ends

Features

Product Standard

IS-9890

Body Material Cum Standard

Cast Iron (IS 210 Gr. FG 220)

Port Opening

Full Bore

Product Description

Three Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Flanges as per BS-10 Table-F (Undrilled)

Test Pressure

Body: 20.7 Bar (Hyd.), Seat: 15.2 Bar (Hyd.)

Notes

Suitable for steam service with specialized PTFE.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

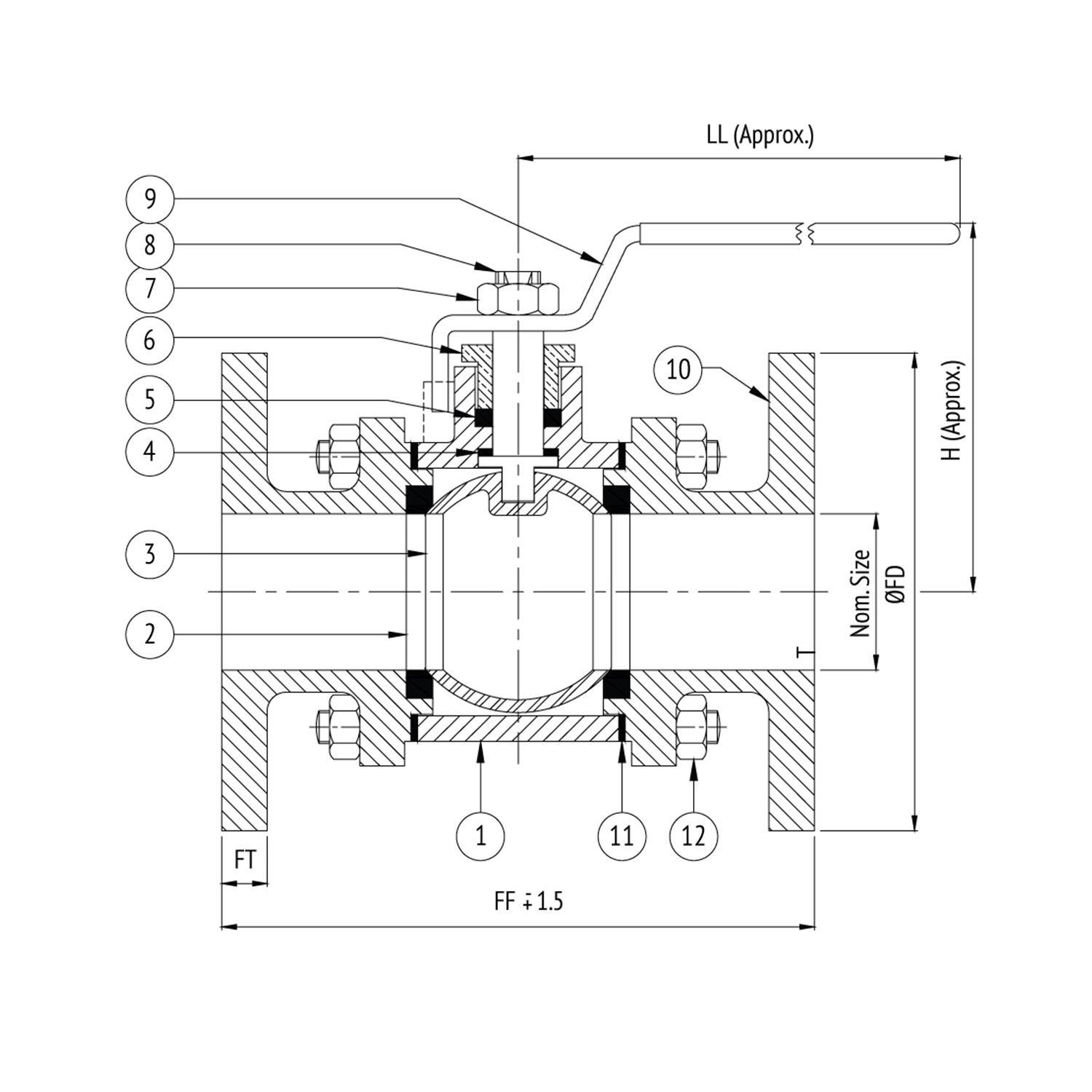

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Iron	IS 210 Gr. FG220
2	Seat	2	PTFE	–
3	Ball	1	Stainless Steel	ASTM A351 Gr. CF8
4	Stem Seal	1	PTFE	–
5	Packing Ring	–	PTFE	–
6	Gland Nut	1	Gun Metal	BS EN 1982 Gr. CC 491K
7	Nut	1	Carbon Steel	–
8	Stem	1	Stainless Steel	ASTM A276 Type 410 / ASTM A276 Type 304
9	Lever	1	Carbon Steel	–
10	Body Connector	1	Cast Iron	IS 210 Gr. FG220
11	Gasket	1	PTFE	–
12	Studs / Bolts & Nuts	To Suit	Carbon Steel	–

Download PDF Product Inquiry

Dimensional Data

Size (mm)	FF	LL	H	ØFD	FT
15	129	120	70	95.3	12.7
20	129	120	70	101.6	12.7
25	151	125	82	120.7	12.7
32	161	155	82	133.4	15.9
40	173	172	105	139.7	15.9
50	207	216	117	165.1	19.1
65	218	321	140	184.2	19.1
80	247	321	147	203.2	19.1
100	283	368	166	228.6	22.3
150	394	570	–	304.8	25.4
200	460	740	–	368.3	28.6

Download PDF Product Inquiry
