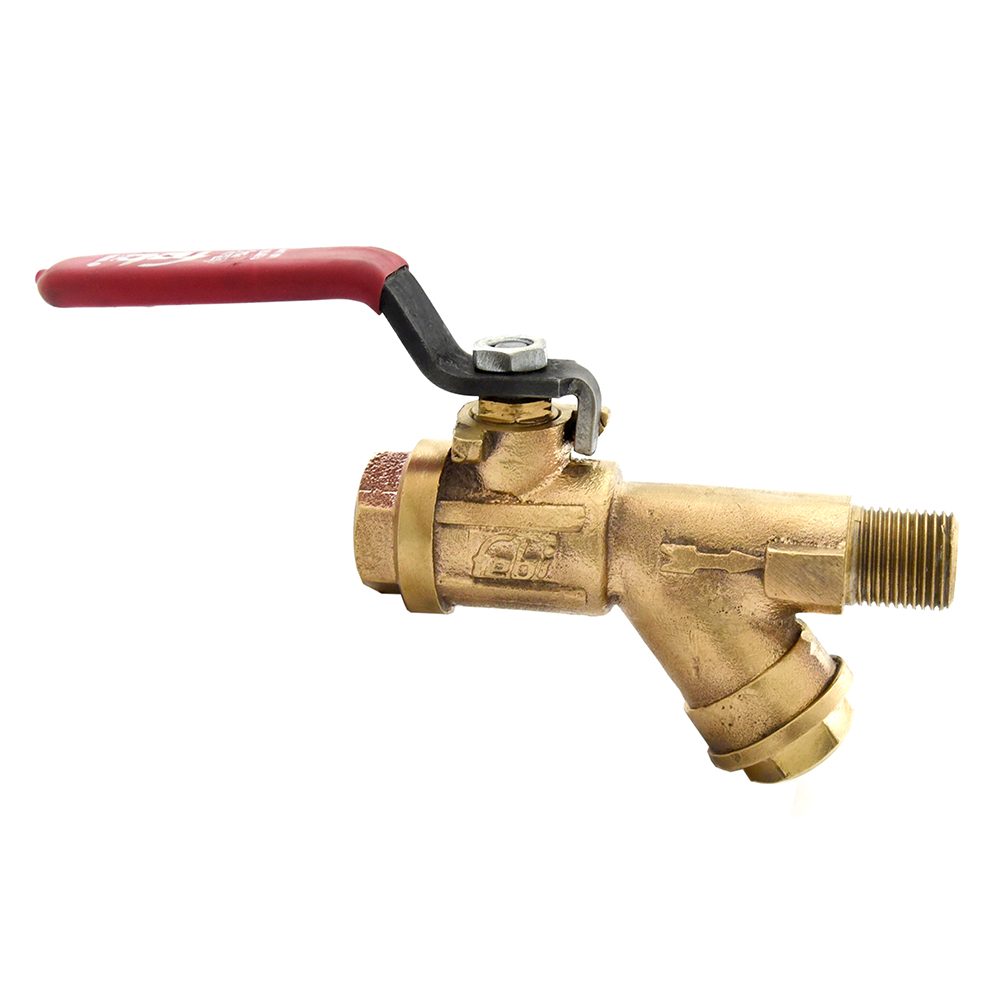

FV-506 Bronze Ball Valve with Strainer, Screwed Ends, PN-20

FV-506 | Bronze Ball Valve with Strainer, Screwed Ends, PN-20

Features

Pressure / Class Rating

PN-20

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Port Opening

Full Bore

Product Description

One Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Inlet Screwed Female & Outlet Screwed Male BSP Parallel Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.), Seat: 250 Psig (Hyd.), Seat: 100 Psig (Air)

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

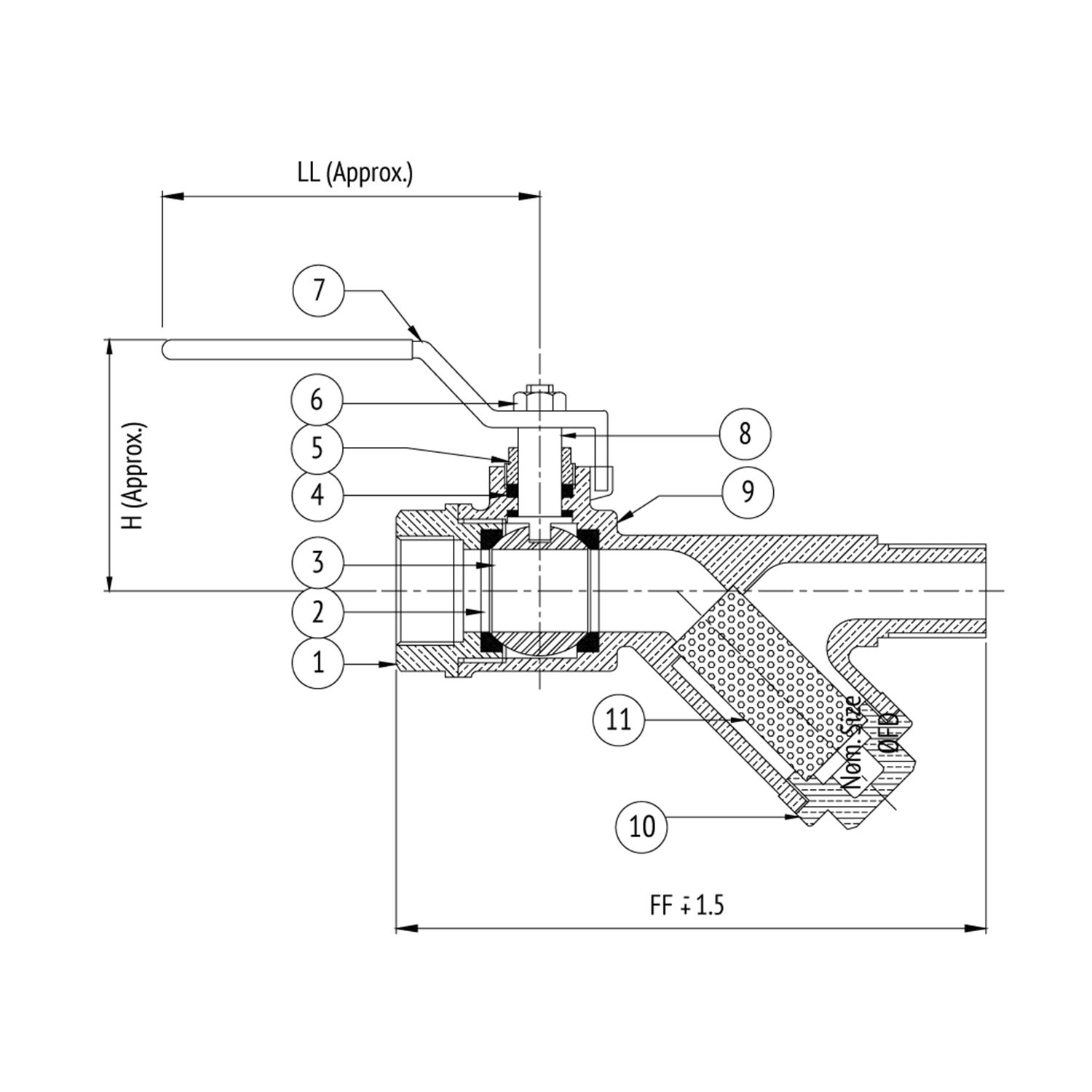

Material Combination

S.No	Description	No.	Material	Specifications
1	Body Connector	1	Bronze	BSEN 1982 Gr. CC491K
2	Seat	2	PTFE	–
3	Ball	1	Stainless Steel	AISI 304
4	Gland Packing Ring	–	PTFE	–
5	Gland	1	Bronze	BSEN 1982 Gr. CC491K
6	Lever Nut	1	Brass / Carbon Steel	–
7	Lever	1	Steel	with PVC Sleeve
8	Stem	1	Stainless Steel	AISI 304
9	Body	1	Bronze	BSEN 1982 Gr. CC491K
10	Screen	1	Stainless Steel	Type 304
11	Plug	1	Bronze	BSEN 1982 Gr. CC491K

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF LL H

15 131 94 60

20 144 130 67

25 194 137 72

32 198 152 72

40 214 170 87

50 248 195 105

Download PDF Product Inquiry
FV-506 | Bronze Ball Valve with Strainer, Screwed Ends, PN-20

Product Inquiry

Size (mm)	FF	LL	H
15	131	94	60
20	144	130	67
25	194	137	72
32	198	152	72
40	214	170	87
50	248	195	105

Features

Pressure / Class Rating

PN-20

Body Material Cum Standard

Bronze (BS EN 1982 Gr. CC491K)

Port Opening

Full Bore

Product Description

One Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Inlet Screwed Female & Outlet Screwed Male BSP Parallel Threads (BS-21)

Test Pressure

Body: 500 Psig (Hyd.), Seat: 250 Psig (Hyd.), Seat: 100 Psig (Air)

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body Connector 1 Bronze BSEN 1982 Gr. CC491K

2 Seat 2 PTFE –

3 Ball 1 Stainless Steel AISI 304

4 Gland Packing Ring – PTFE –

5 Gland 1 Bronze BSEN 1982 Gr. CC491K

6 Lever Nut 1 Brass / Carbon Steel –

7 Lever 1 Steel with PVC Sleeve

8 Stem 1 Stainless Steel AISI 304

9 Body 1 Bronze BSEN 1982 Gr. CC491K

10 Screen 1 Stainless Steel Type 304

11 Plug 1 Bronze BSEN 1982 Gr. CC491K

Dimensional Data

Size (mm) FF LL H

15 131 94 60

20 144 130 67

25 194 137 72

32 198 152 72

40 214 170 87

50 248 195 105

Size (mm)	FF	LL	H
15	131	94	60
20	144	130	67
25	194	137	72
32	198	152	72
40	214	170	87
50	248	195	105
