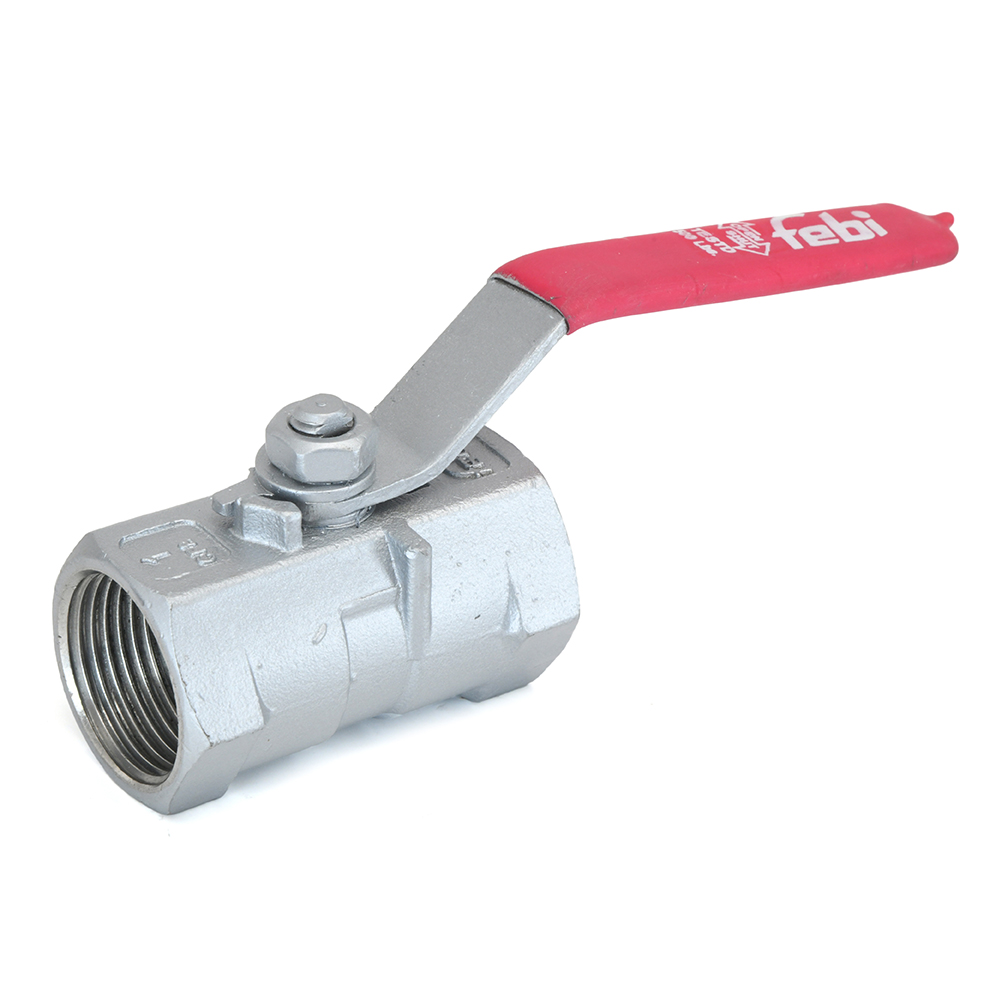

FV-512 Investment Casting Stainless Steel (CF8M) Ball Valve, Screwed Ends

FV-512 | Investment Casting Stainless Steel (CF8M) Ball Valve, Screwed Ends

Features

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8M)

Port Opening

Reduced Bore

Product Description

One Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 316), PTFE Seats

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

500 Psig (Hyd)

Application Medium

Nitric Acid, Acetic Acid

Notes

Suitable for steam service with specialized PTFE.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

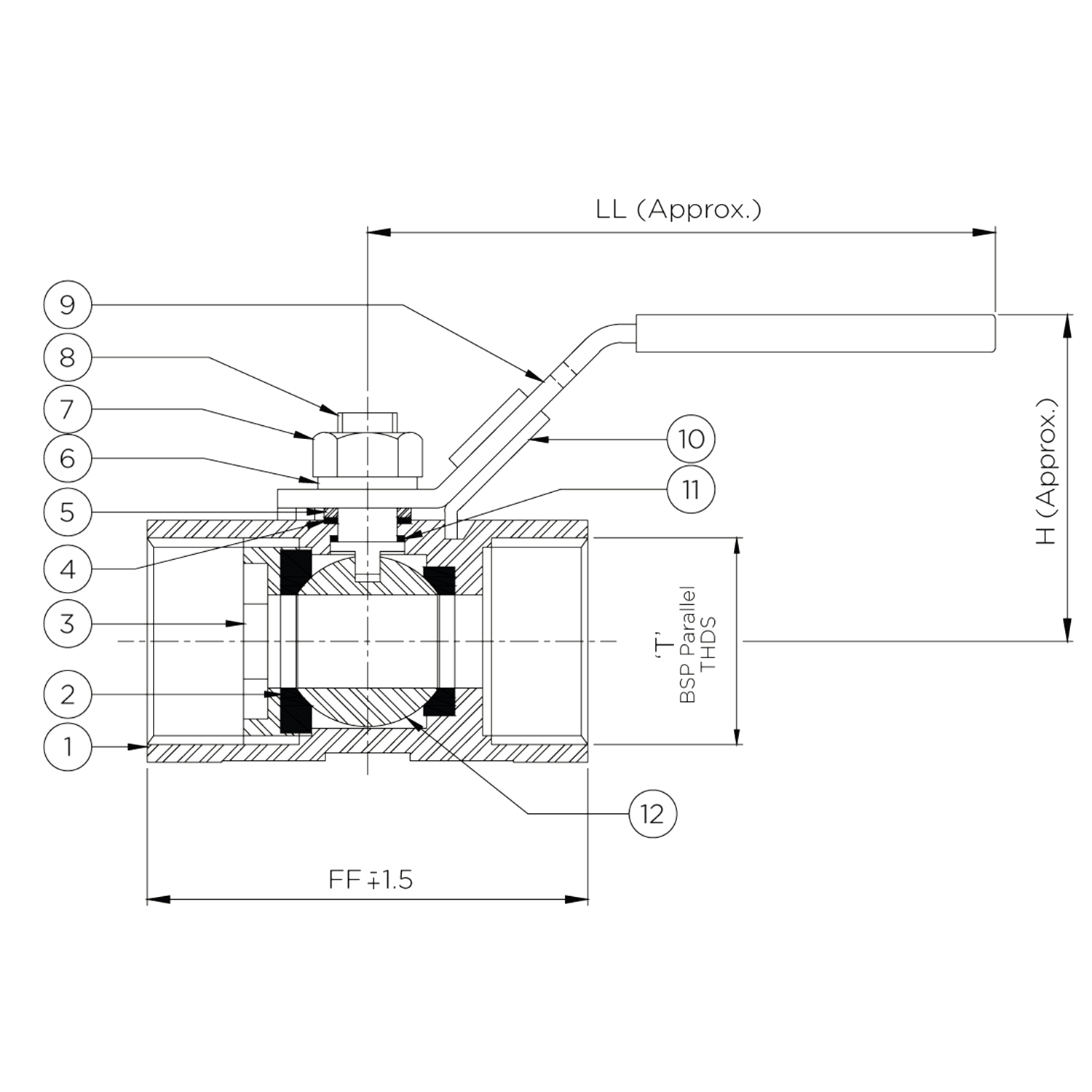

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Stainless Steel	AISI A 351 Gr. CF8M
2	Seat	2	PTFE	–
3	Seat Retainer	1	Cast Stainless Steel	AISI A 351 Gr. CF8M
4	Packing Ring	1	PTFE	–
5	Gland	1	Stainless Steel	ASTM A 276 Type 316
6	Washer	1	Stainless Steel	AISI 316
7, 8	Nut, Stem	1	Stainless Steel	ASTM A 276 Type 316
9	Lever	1	Stainless Steel	PVC Coated
10	Locking Device	1	Stainless Steel	AISI 316
11	Stem Seal	1	PTFE	–
12	Ball	1	Cast Stainless Steel	AISI A 351 Gr. CF8M

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF LL H T

15 57 100 45 1/2”

20 59 110 50 3/4”

25 71 135 55 1”

32 78 135 62 1.1/4”

40 83 160 65 1.1/2”

50 100 160 76 2

Download PDF Product Inquiry
FV-512 | Investment Casting Stainless Steel (CF8M) Ball Valve, Screwed Ends

Product Inquiry

Size (mm)	FF	LL	H	T
15	57	100	45	1/2”
20	59	110	50	3/4”
25	71	135	55	1”
32	78	135	62	1.1/4”
40	83	160	65	1.1/2”
50	100	160	76	2

Features

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8M)

Port Opening

Reduced Bore

Product Description

One Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 316), PTFE Seats

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

500 Psig (Hyd)

Application Medium

Nitric Acid, Acetic Acid

Notes

Suitable for steam service with specialized PTFE.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Stainless Steel AISI A 351 Gr. CF8M

2 Seat 2 PTFE –

3 Seat Retainer 1 Cast Stainless Steel AISI A 351 Gr. CF8M

4 Packing Ring 1 PTFE –

5 Gland 1 Stainless Steel ASTM A 276 Type 316

6 Washer 1 Stainless Steel AISI 316

7, 8 Nut, Stem 1 Stainless Steel ASTM A 276 Type 316

9 Lever 1 Stainless Steel PVC Coated

10 Locking Device 1 Stainless Steel AISI 316

11 Stem Seal 1 PTFE –

12 Ball 1 Cast Stainless Steel AISI A 351 Gr. CF8M

Dimensional Data

Size (mm) FF LL H T

15 57 100 45 1/2”

20 59 110 50 3/4”

25 71 135 55 1”

32 78 135 62 1.1/4”

40 83 160 65 1.1/2”

50 100 160 76 2

Size (mm)	FF	LL	H	T
15	57	100	45	1/2”
20	59	110	50	3/4”
25	71	135	55	1”
32	78	135	62	1.1/4”
40	83	160	65	1.1/2”
50	100	160	76	2
