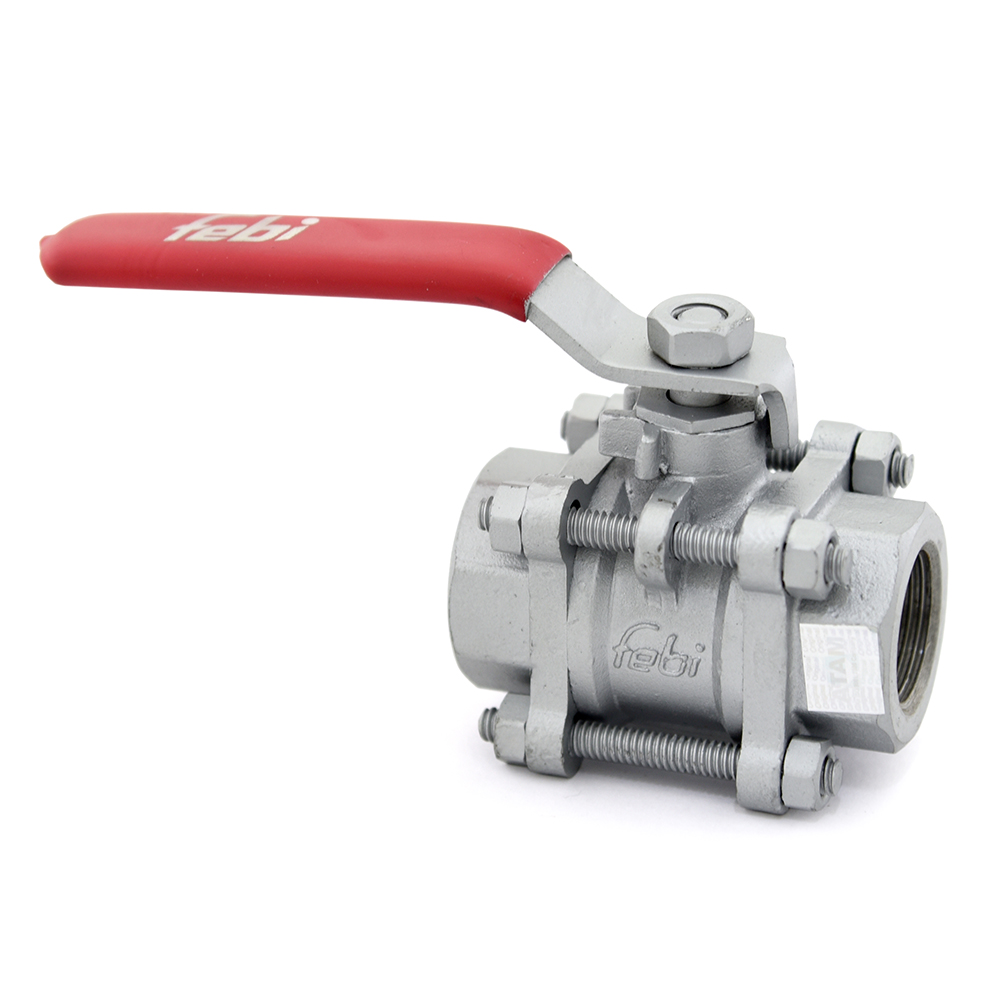

FV-515 Investment Casting Carbon Steel (WCB) Ball Valve, Screwed Ends, Class-800

FV-515 | Investment Casting Carbon Steel (WCB) Ball Valve, Screwed Ends, Class-800

Features

Product Standard

BS EN 17292

Pressure / Class Rating

Class-800

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Port Opening

Full Bore

Product Description

Three Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Screwed Female BSP Parallel Threads (BS-21), Socket Welded Ends as per ASME B16.11

Test Pressure

Body: 178 Bar (Hyd.), Seat: 76 Bar (Hyd.), Seat: 7 Bar (Air)

Notes

Suitable for steam service with specialized PTFE.
Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.
Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Carbon Steel	ASTM A216 Gr. WCB
2	Pipe Connector	2	Cast Carbon Steel	ASTM A216 Gr. WCB
3	Body Seal	2	PTFE	–
4	Ball	1	Stainless Steel	ASTM A 351 Gr. CF8
				ASTM A 276 Type 304
5	Stem Seal	1	PTFE	–
6	Packing	1	PTFE	–
7	Stem	1	Stainless Steel	ASTM A 276 Type 410
8	Gland Nut	1	Stainless Steel	ASTM A 276 Type 410
9	Lever (with Plastic Sleeve)	1	Carbon Steel	–
10	Lever Nut	1	Stainless Steel	Type 410
11	Studs & Nuts	To Suit	Alloy Steel	ASTM A 193 Gr. B7
				ASTM A 194 Gr. 2H

Download PDF Product Inquiry

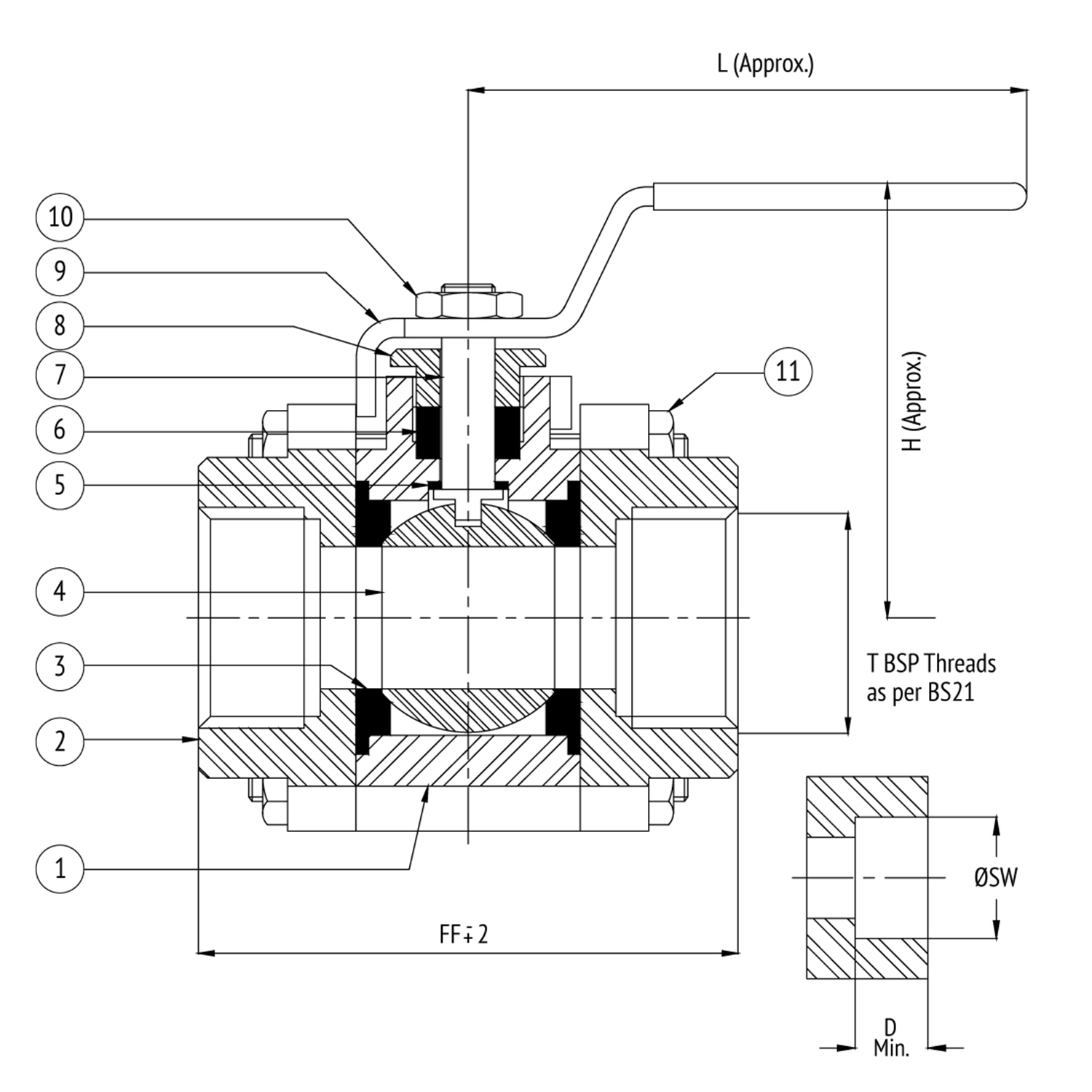

Dimensional Data

Size (mm)	FF	LL	H	T	ØSW	D
15	66	104	55	1/2”	21.8 / 22.2	9.5
20	75	104	65	3/4”	27.2 / 27.6	12.5
25	85	135	82	1”	33.9 / 34.3	12.5
32	102	180	85	1.1/4”	42.7 / 43.1	12.5
40	115	180	94	1.1/2”	48.8 / 49.2	12.5
50	130	216	115	2”	61.2 / 61.7	16

Download PDF Product Inquiry
