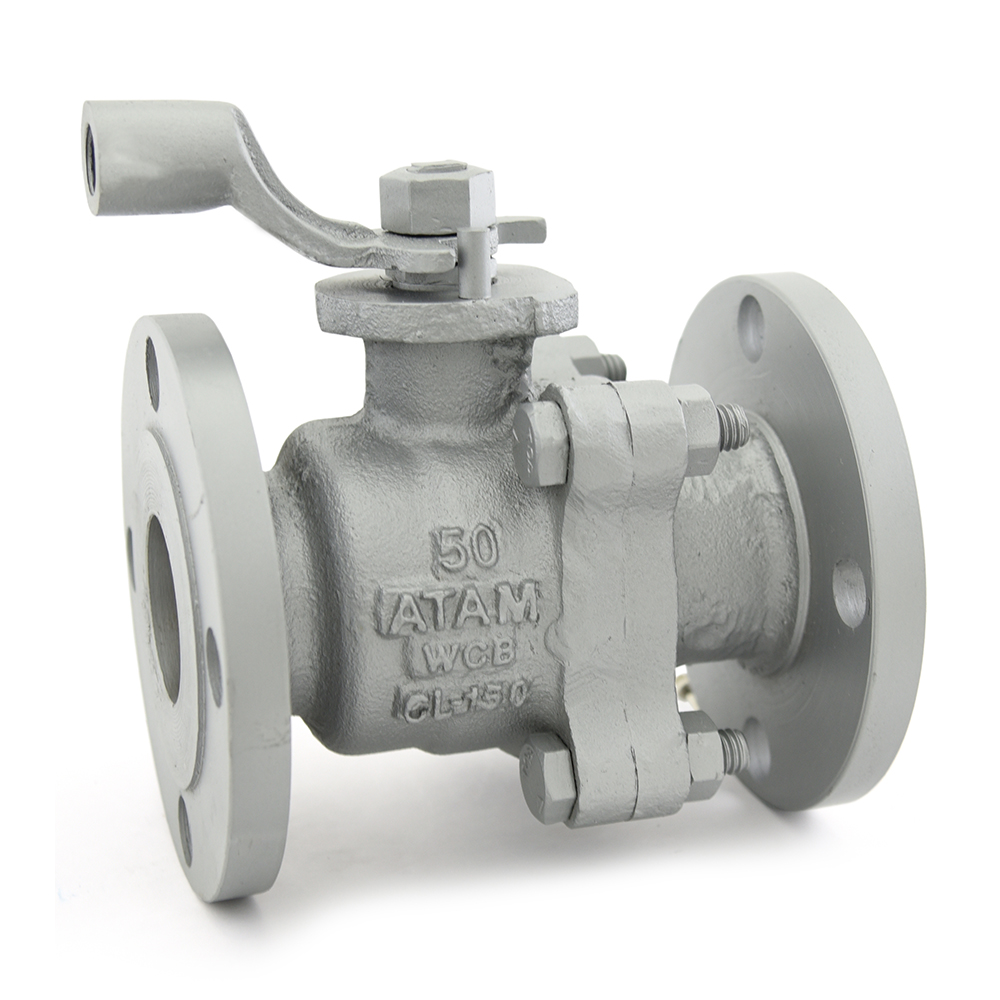

FV-516A Investment Casting Carbon Steel (WCB) Ball Valve, Flanged Ends, Class-150

FV-516A | Investment Casting Carbon Steel (WCB) Ball Valve, Flanged Ends, Class-150

Features

Product Standard

BS EN 17292

Pressure / Class Rating

Class-150

Body Material Cum Standard

Cast Carbon Steel (ASTM A216 Gr. WCB)

Port Opening

Full Bore

Product Description

Two Piece Design, Lever Operated (Blow Out Proof Stem)

Type of Seat

Renewable Seat

Trim

Ball & Stem: Stainless Steel (AISI 304), PTFE Seats

End Details

Flanged Ends as per ASME B16.5 (Class-150) Raised Face (Drilled)

Test Pressure

Body: 30 Bar (Hyd.), Seat: 22 Bar (Hyd.), Seat: 7 Bar (Air)

Notes

Suitable for steam service with specialized PTFE.
Can be provided with Glass Filled PTFE, Graphite Blended PTFE & PEEK Seats on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Carbon Steel	ASTM A216 Gr. WCB
2	Seat	2	PTFE with Graphoil	–
3	Ball	1	Stainless Steel	AISI A 351 Gr. CF8 / AISI 304
4	Stem	1	Stainless Steel	ASTM A 276 Type 410 / 304
5	Stem Seal	1	Graphoil	–
6	Packing	–	PTFE with Graphoil	–
7	Gland	1	Stainless Steel	ASTM A 276 Type 410
8	Disc Spring	2	Stainless Steel	Any Grade
9	Stopper Pin	1	Carbon Steel	–
10	Stopper	1	Carbon Steel	–
11	Locking Nut	2	Stainless Steel	–
12	Lever	1	Carbon Steel (with PVC Sleeve)	–
13	Gasket	1	Spiral Wound	S.S. 304 with Graphoil Filled
14	Studs & Nuts	To Suit	Alloy Steel / HT Steel	ASTM A 193 Gr. B7
				ASTM A 194 Gr. 2H
15	Cap	1	Cast Carbon Steel	ASTM A216 Gr. WCB

Download PDF Product Inquiry

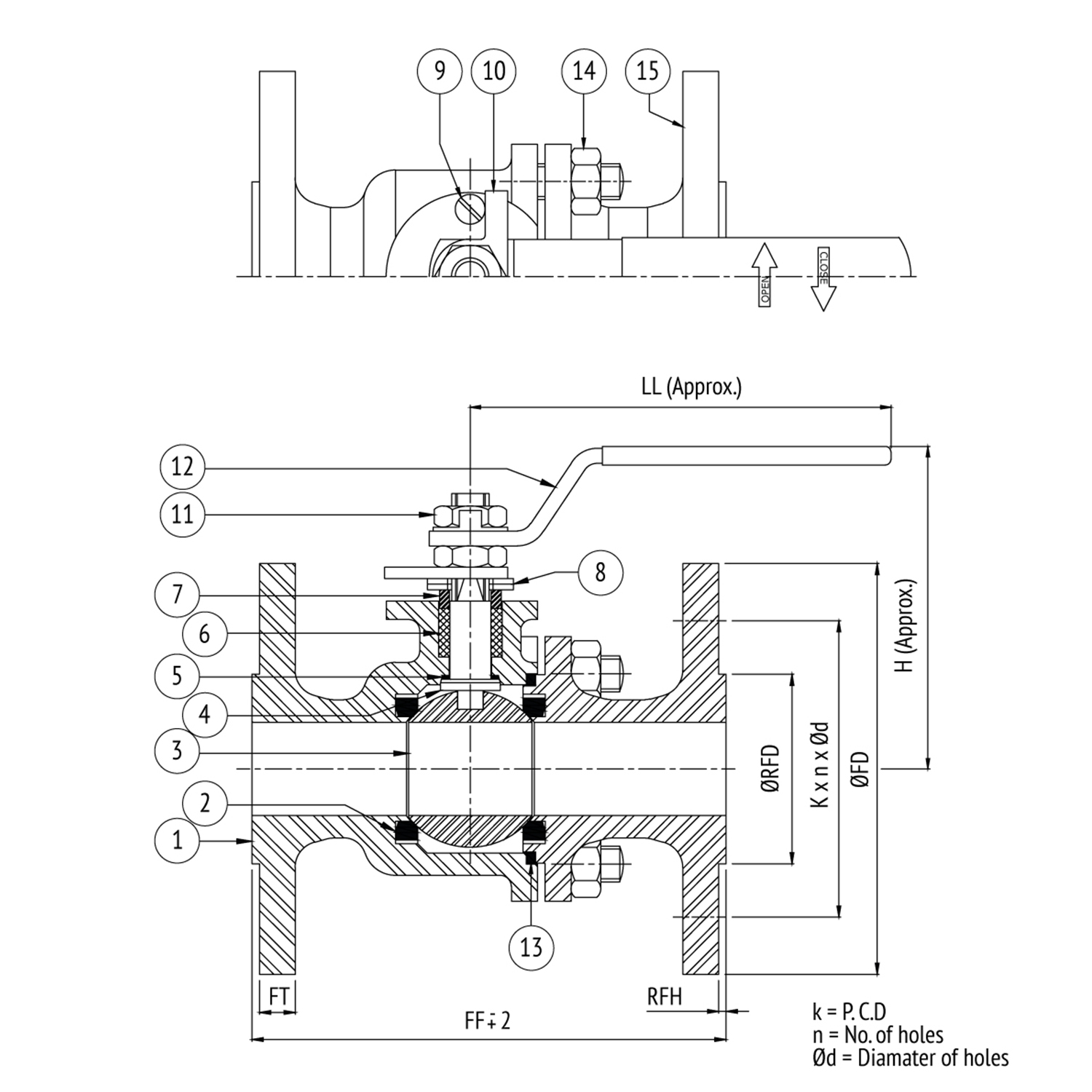

Dimensional Data

Size (mm)	FF	FT	ØRFD	RFH	ØFD	K	n	ØD	LL	H
25	127	9.6	50.8	2	110	79.4	4	5/8”	140	102
40	165	12.7	73	2	125	98.4	4	5/8”	200	130
50	178	14.3	92.1	2	150	120.7	4	3/4”	200	145
65	191	15.9	104.8	2	180	139.7	4	3/4”	250	150
80	203	17.5	127	2	190	152.4	4	3/4”	400	175
100	229	22.3	157.2	2	230	190.5	8	3/4”	500	226
150	394	23.9	215.9	2	280	241.3	8	7/8”	800	274

Download PDF Product Inquiry
