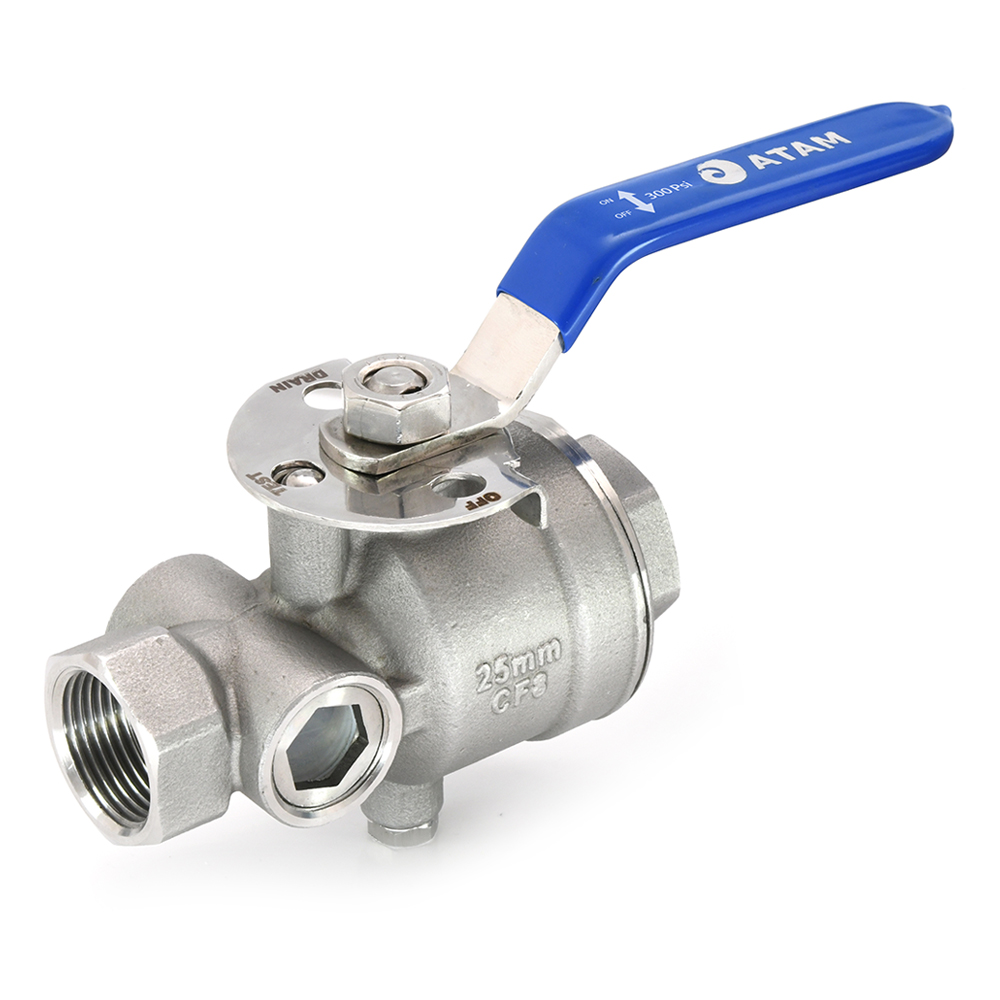

IC-31 Test & Drain C.S.S. Ball Valve for Sprinkler System

IC-31 | Test & Drain C.S.S. Ball Valve for Sprinkler System

Features

Rated Pressure

300 PSI

End Connection

Screwed Female BSP Parallel Threads as per BS 21

· Test & Drain Ball Valve for Sprinkler System combines the function of test and drain for wet sprinkler system.· Single handle ball valve with three working position consist of OFF, TEST & DRAIN for wet sprinkler systems · Tamper resistant test orifice with sight glass feature· Lever operated, blow out proof system· Orifice Sizes : 5.6K /8K (other sizes available on request)· Max. Working Pressure : 300Psig (Hyd.)· Test Pressure - Body : 450 Psig (Hyd.); Seat : 330 Psig (Hyd.)

Note : Other Screwed ends shall be provided on request

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

Material Combination

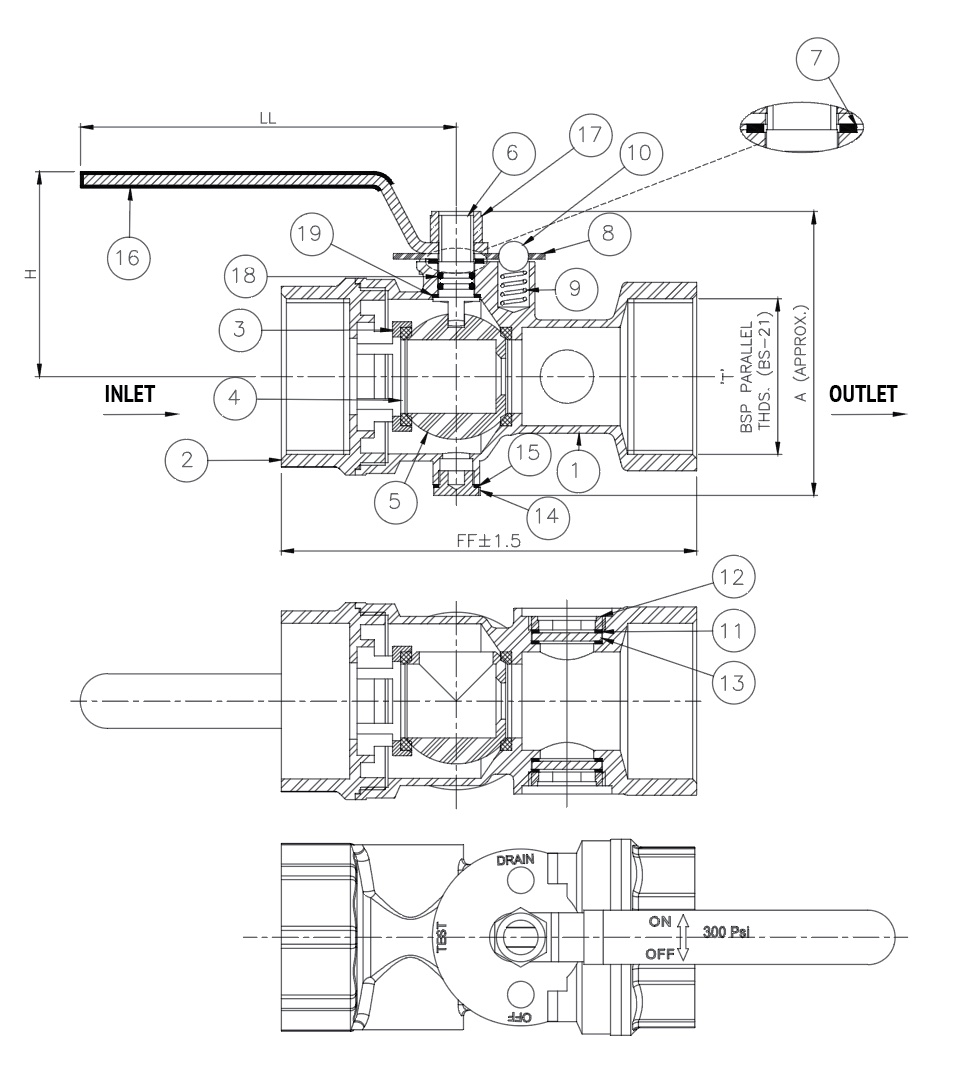

S.No	Description	No.	Material	Specifications
1	Body	1	C.S.S.	ASTM A351 Gr. CF8
2	Connector	1	C.S.S.	ASTM A351 Gr. CF8
3	Spacer	1	C.S.S.	ASTM A351 Gr. CF8
4	Seat Ring	2	PTFE	–
5	Ball	1	C.S.S.	ASTM A351 Gr. CF8
6	Stem	1	S.S.	ASTM A276 Type 304
7	Plate Seal Ring	1	PTFE	–
8	Direction Locking Plate	1	S.S.	202 Sheet
9	Spring	1	S.S.	AISI 304
10	Locking Ball	1	S.S.	Polished
11	Glass Seal Ring	4	PTFE	–
12	Gland	2	S.S.	AISI 304
13	Transparent Glass	2	Acrylic	–
14	Drain Plug	1	S.S.	ASTM A276 Type 304
15	Plug Seal Ring	1	PTFE	–
16	Lever	1	S.S.	202 Sheet (with PVC Grip)
17	Nyloc Nut	1	S.S.	AISI 304
18	O-Ring	2	EPDM	–
19	Stem Seal	1	PTFE	–

Download PDF Product Inquiry

Dimensional Data

Size (mm) FF A H LL T

25 128.5 106 72 137 1″

32 128.5 106 72 137 1.1/4″

40 152 106 76 137 1.1/2″

50 152 106 76 137 2″

Download PDF Product Inquiry
IC-31 | Test & Drain C.S.S. Ball Valve for Sprinkler System

Product Inquiry

Size (mm)	FF	A	H	LL	T
25	128.5	106	72	137	1″
32	128.5	106	72	137	1.1/4″
40	152	106	76	137	1.1/2″
50	152	106	76	137	2″

Features

Rated Pressure

300 PSI

End Connection

Screwed Female BSP Parallel Threads as per BS 21

· Test & Drain Ball Valve for Sprinkler System combines the function of test and drain for wet sprinkler system.· Single handle ball valve with three working position consist of OFF, TEST & DRAIN for wet sprinkler systems · Tamper resistant test orifice with sight glass feature· Lever operated, blow out proof system· Orifice Sizes : 5.6K /8K (other sizes available on request)· Max. Working Pressure : 300Psig (Hyd.)· Test Pressure - Body : 450 Psig (Hyd.); Seat : 330 Psig (Hyd.)

Note : Other Screwed ends shall be provided on request

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 C.S.S. ASTM A351 Gr. CF8

2 Connector 1 C.S.S. ASTM A351 Gr. CF8

3 Spacer 1 C.S.S. ASTM A351 Gr. CF8

4 Seat Ring 2 PTFE –

5 Ball 1 C.S.S. ASTM A351 Gr. CF8

6 Stem 1 S.S. ASTM A276 Type 304

7 Plate Seal Ring 1 PTFE –

8 Direction Locking Plate 1 S.S. 202 Sheet

9 Spring 1 S.S. AISI 304

10 Locking Ball 1 S.S. Polished

11 Glass Seal Ring 4 PTFE –

12 Gland 2 S.S. AISI 304

13 Transparent Glass 2 Acrylic –

14 Drain Plug 1 S.S. ASTM A276 Type 304

15 Plug Seal Ring 1 PTFE –

16 Lever 1 S.S. 202 Sheet (with PVC Grip)

17 Nyloc Nut 1 S.S. AISI 304

18 O-Ring 2 EPDM –

19 Stem Seal 1 PTFE –

Dimensional Data

Size (mm) FF A H LL T

25 128.5 106 72 137 1″

32 128.5 106 72 137 1.1/4″

40 152 106 76 137 1.1/2″

50 152 106 76 137 2″

Size (mm)	FF	A	H	LL	T
25	128.5	106	72	137	1″
32	128.5	106	72	137	1.1/4″
40	152	106	76	137	1.1/2″
50	152	106	76	137	2″
