Features
Body Material Cum Standard
Cast Stainless Steel (ASTM A351 Gr. CF8)
Product Description
Two Piece Design, Screwed In Bonnet, Spring Loaded, Suitable for Both Horizontal & Vertical Line
Type of Seat
Integral Seat
Type of Disc
Renewable Guided Disc
Trim
Stainless Steel (Type 304) with Rubber O-Ring Facing
End Details
Screwed Female BSP Parallel Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.), Seat: 80 Psig (Air)
Notes
Also available in CF8M (SS 316)
Other screwed end specifications can be provided on request.
Suitability
Water
Steam
Gas
Oil
Air
-
Material Combination
S.No Description No. Material Specifications 1 Body 1 Cast Stainless Steel ASTM A 351 Gr. CF8 2 Connector 1 Cast Stainless Steel ASTM A 351 Gr. CF8 3 Disc Guide 1 Stainless Steel AISI 304 4 Spring 1 Stainless Steel AISI 304 5 Disc 1 EPDM (Rubber) – -
Dimensional Data
Size (mm) Size (inches) FF T 15 1/2” 54 1/2” 20 3/4” 62 3/4” 25 1” 72 1” 40 1.1/2” 83 1.1/2” 50 2” 95 2”
Features
Body Material Cum Standard
Cast Stainless Steel (ASTM A351 Gr. CF8)
Product Description
Two Piece Design, Screwed In Bonnet, Spring Loaded, Suitable for Both Horizontal & Vertical Line
Type of Seat
Integral Seat
Type of Disc
Renewable Guided Disc
Trim
Stainless Steel (Type 304) with Rubber O-Ring Facing
End Details
Screwed Female BSP Parallel Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.), Seat: 80 Psig (Air)
Body Material Cum Standard
Cast Stainless Steel (ASTM A351 Gr. CF8)
Product Description
Two Piece Design, Screwed In Bonnet, Spring Loaded, Suitable for Both Horizontal & Vertical Line
Type of Seat
Integral Seat
Type of Disc
Renewable Guided Disc
Trim
Stainless Steel (Type 304) with Rubber O-Ring Facing
End Details
Screwed Female BSP Parallel Threads (BS-21)
Test Pressure
Body: 300 Psig (Hyd.), Seat: 200 Psig (Hyd.), Seat: 80 Psig (Air)
Notes
Also available in CF8M (SS 316)
Other screwed end specifications can be provided on request.
Suitability
Water
Steam
Gas
Oil
Air

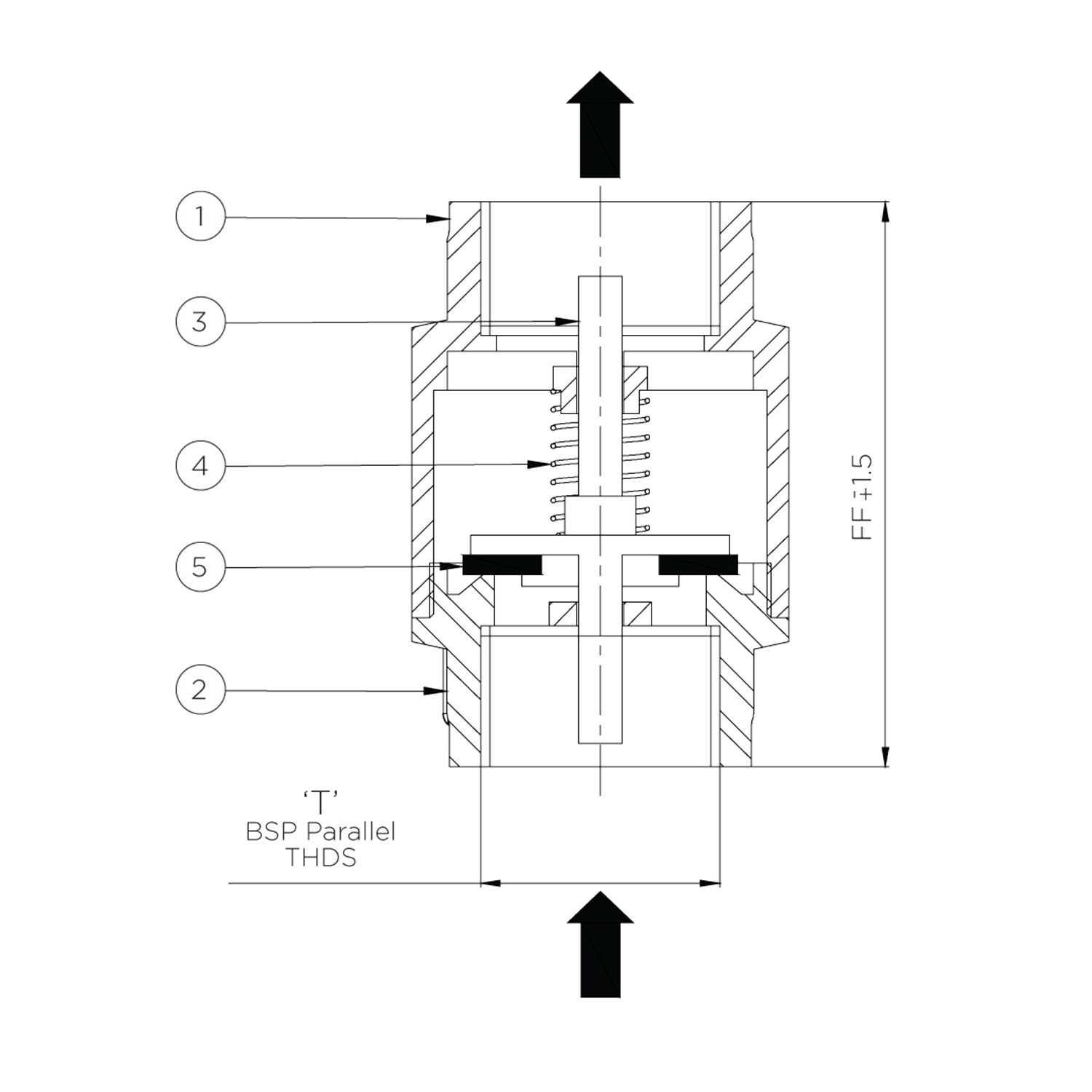

Material Combination
S.No
Description
No.
Material
Specifications
1
Body
1
Cast Stainless Steel
ASTM A 351 Gr. CF8
2
Connector
1
Cast Stainless Steel
ASTM A 351 Gr. CF8
3
Disc Guide
1
Stainless Steel
AISI 304
4
Spring
1
Stainless Steel
AISI 304
5
Disc
1
EPDM (Rubber)
–
| S.No | Description | No. | Material | Specifications |
|---|---|---|---|---|
| 1 | Body | 1 | Cast Stainless Steel | ASTM A 351 Gr. CF8 |
| 2 | Connector | 1 | Cast Stainless Steel | ASTM A 351 Gr. CF8 |
| 3 | Disc Guide | 1 | Stainless Steel | AISI 304 |
| 4 | Spring | 1 | Stainless Steel | AISI 304 |
| 5 | Disc | 1 | EPDM (Rubber) | – |
Dimensional Data
Size (mm)
Size (inches)
FF
T
15
1/2”
54
1/2”
20
3/4”
62
3/4”
25
1”
72
1”
40
1.1/2”
83
1.1/2”
50
2”
95
2”
| Size (mm) | Size (inches) | FF | T |
|---|---|---|---|
| 15 | 1/2” | 54 | 1/2” |
| 20 | 3/4” | 62 | 3/4” |
| 25 | 1” | 72 | 1” |
| 40 | 1.1/2” | 83 | 1.1/2” |
| 50 | 2” | 95 | 2” |
Selected Product

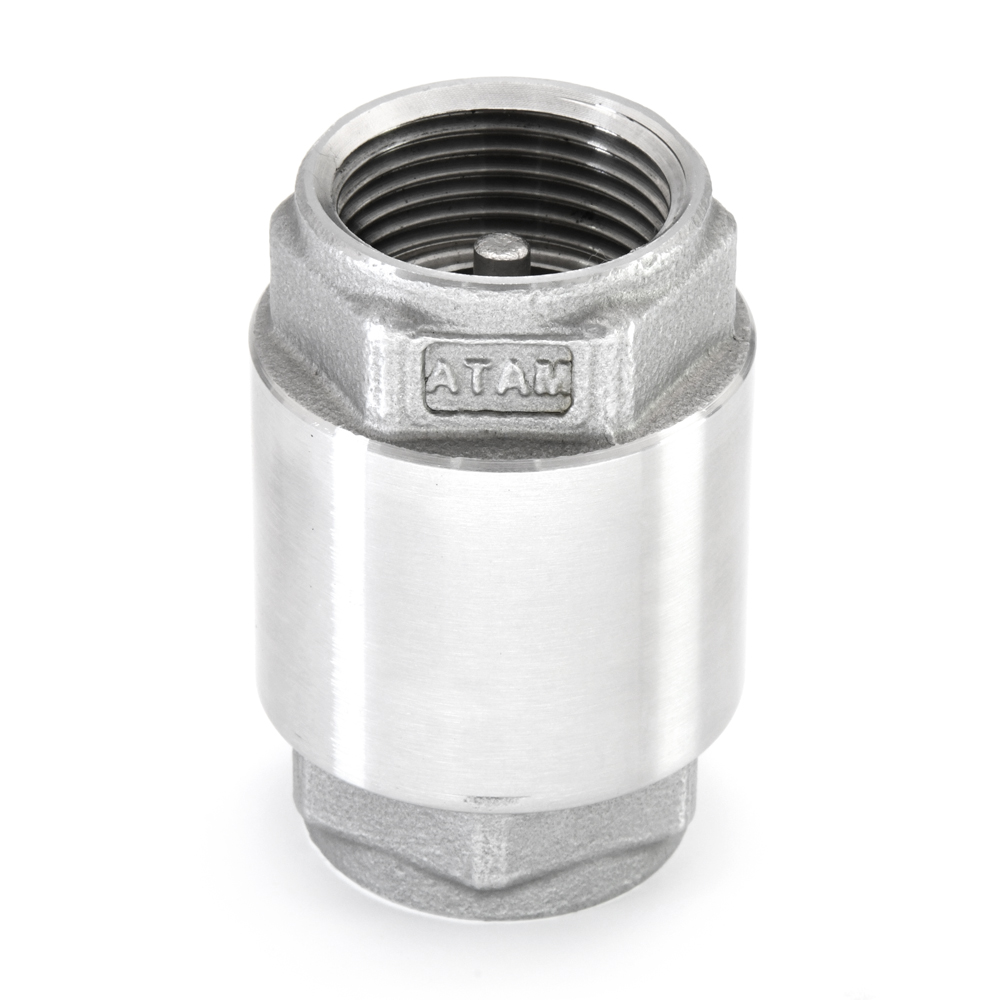

IC-87 Investment Casting Stainless Steel (CF8) Multi Utility Check Valve, Screwed Ends
