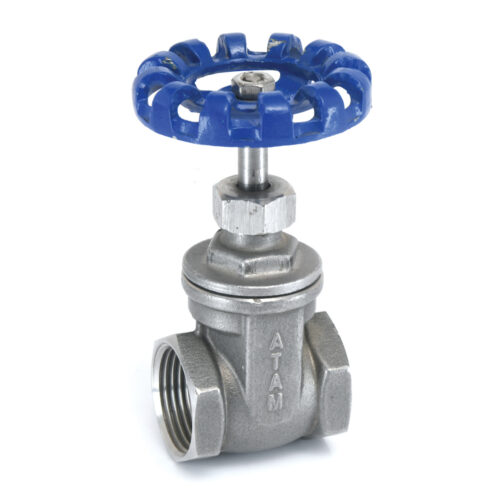

IC-99 Investment Casting Stainless Steel (CF8) Gate Valve, Screwed Ends, PN-16

IC-99 | Investment Casting Stainless Steel (CF8) Gate Valve, Screwed Ends, PN-16

Features

Pressure / Class Rating

PN-16

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Trim

Stainless Steel (Type 304)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 350 Psig (Hyd.), Seat: 255 Psig (Hyd.)

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)
Other screwed end specifications can be provided on request.

Suitability

Water

Steam

Gas

Oil

Air

Download PDF Product Inquiry

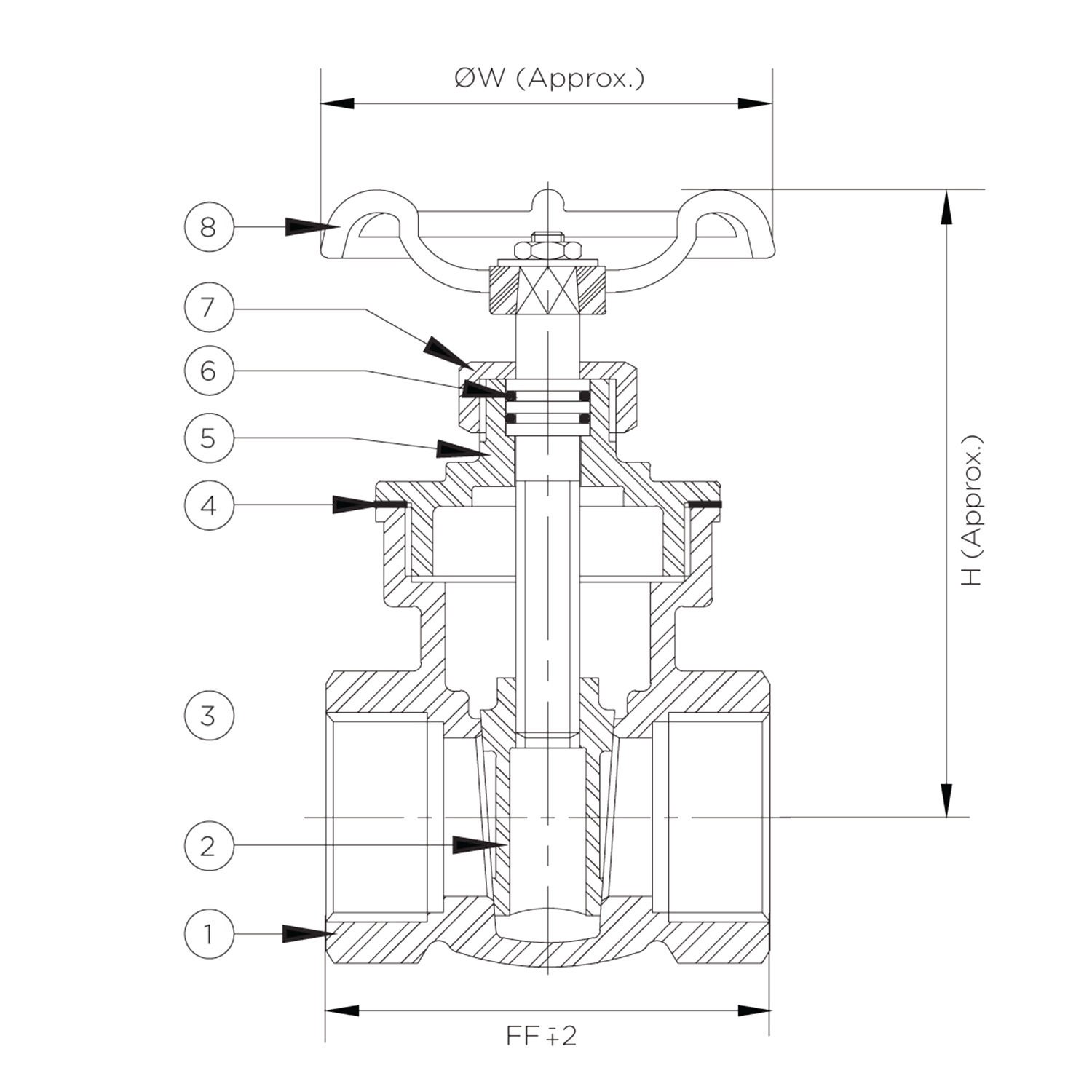

Material Combination

S.No	Description	No.	Material	Specifications
1	Body	1	Cast Stainless Steel	ASTM A 351 Gr. CF8
2	Wedge	1	Stainless Steel	ASTM A 276 Type 304
3	Stem	1	Stainless Steel	ASTM A 276 Type 304
4	Gasket	1	PTFE	–
5	Bonnet	1	Cast Stainless Steel	ASTM A 351 Gr. CF8
6	Packing	1	Rubber	–
7	Gland Nut	1	Stainless Steel	ASTM A 276 Type 304
8	Handwheel	1	Aluminium	–

Download PDF Product Inquiry

Dimensional Data

Size (mm) Size (inches) FF H øW

15 1/2” 42 70 53

20 3/4” 45 75 53

25 1” 50 90 65

32 1.1/4” 56 105 70

40 1.1/2” 58 115 78

50 2” 65 135 98

Download PDF Product Inquiry
IC-99 | Investment Casting Stainless Steel (CF8) Gate Valve, Screwed Ends, PN-16

Product Inquiry

Size (mm)	Size (inches)	FF	H	øW
15	1/2”	42	70	53
20	3/4”	45	75	53
25	1”	50	90	65
32	1.1/4”	56	105	70
40	1.1/2”	58	115	78
50	2”	65	135	98

Features

Pressure / Class Rating

PN-16

Body Material Cum Standard

Cast Stainless Steel (ASTM A351 Gr. CF8)

Product Description

Screwed in Bonnet, Inside Screw, Non Rising Stem, Handwheel Operated

Type of Seat

Integral Seat

Trim

Stainless Steel (Type 304)

End Details

Screwed Female BSP Parallel Threads (BS-21)

Test Pressure

Body: 350 Psig (Hyd.), Seat: 255 Psig (Hyd.)

Application Medium

Food Processing

Notes

Also available in CF8M (SS 316)
Other screwed end specifications can be provided on request.

Download PDF

Suitability

Water

Steam

Gas

Oil

Air

Material Combination

S.No Description No. Material Specifications

1 Body 1 Cast Stainless Steel ASTM A 351 Gr. CF8

2 Wedge 1 Stainless Steel ASTM A 276 Type 304

3 Stem 1 Stainless Steel ASTM A 276 Type 304

4 Gasket 1 PTFE –

5 Bonnet 1 Cast Stainless Steel ASTM A 351 Gr. CF8

6 Packing 1 Rubber –

7 Gland Nut 1 Stainless Steel ASTM A 276 Type 304

8 Handwheel 1 Aluminium –

Dimensional Data

Size (mm) Size (inches) FF H øW

15 1/2” 42 70 53

20 3/4” 45 75 53

25 1” 50 90 65

32 1.1/4” 56 105 70

40 1.1/2” 58 115 78

50 2” 65 135 98

Size (mm)	Size (inches)	FF	H	øW
15	1/2”	42	70	53
20	3/4”	45	75	53
25	1”	50	90	65
32	1.1/4”	56	105	70
40	1.1/2”	58	115	78
50	2”	65	135	98
